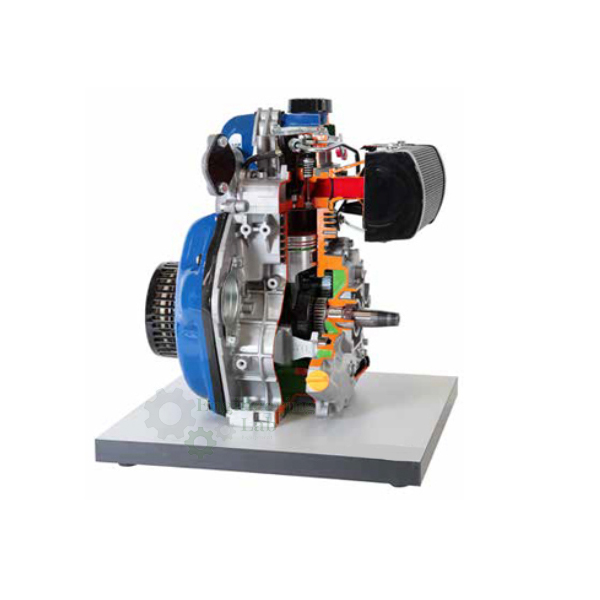

Cut Model of Single Cylinder Four Stroke Diesel Engine
Product Code : EL-AELE-10730
Quick Answer: The Cut Model of Single Cylinder Four Stroke Diesel Engine is a cut-away, dissectible training model that reveals the internal constructional details of a single cylinder four stroke diesel engine, including the valves, pistons, pumps, crankshaft, and camshaft. It is professionally painted with different colours to differentiate the various parts, cross-sections, lubricating circuit, fuel system, and cooling system, and it is mounted on a sturdy iron frame with a flywheel. The cut section helps students understand the parts and working of the engine easily.
The cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system, etc. Many parts have been chromium-plated and galvanized for a longer life. The engine is sectioned to show the internal constructional details, and the working of individual parts and accessories like valves, pistons, pumps, crankshaft, and camshaft is demonstrated.
This actual cut section engine helps students understand the parts and the working of the engine very easily, and it is specially made dissectible for demonstration purposes. It is provided with a flywheel and is mounted on a sturdy iron frame. The actual cut section engine is supplied with a key card and interesting literature regarding its working.
FEATURES:
Operated: Manually (Through a Crank Handle)
Equipment Layout: On Base
Fine finish
Simple operations
Functional accuracy
SPECIFICATION:
Displacement 210 cc
Power 4 hp Direct Injection
Camshaft in the Crankcase
Overhead Camshafts
RPM Regulator
Toroidal Oil Pump
Injection Pump
Injector
Silencer
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 500x 600mm
Weight (approx.): 45kg
