Wankel Engine Model

Wankel Engine Model

Product Code : EL-AELE-10740

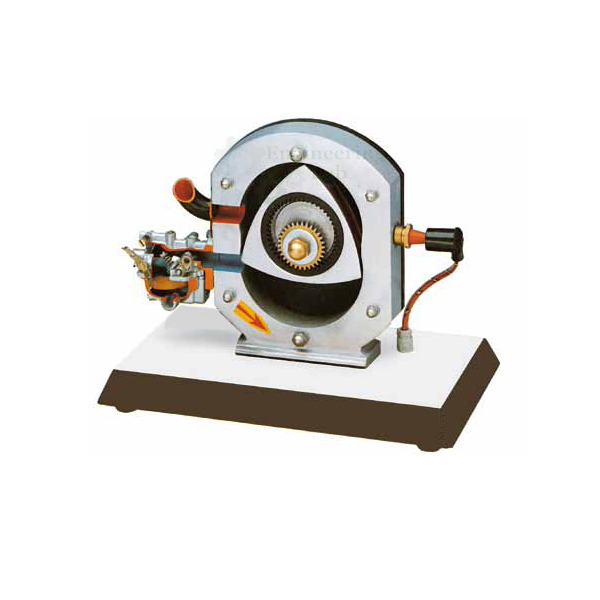

Quick Answer: This Wankel Engine Model is an educational model of a Wankel rotary engine, built true to the original and complete with a cutaway carburetor. The rotor (triangular piston) is driven by the driving shaft and rotates inside the stator, clearly showing the different phases of operation.

During the compression phase, a small bulb lights up to simulate the gas ignition. This cutaway model is carefully sectioned for training purposes and professionally painted with different colours to better differentiate the various parts, cross-sections, and fuel system, and many parts are chromium-plated and galvanized for longer life.

FEATURES:
Wankel engine model ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
Equipment Layout: On Base with wheel
Fine finish
Simple operations
Functional accuracy
Operated: Manually

SPECIFICATION:
Light metal construction.
Mounted on a base
Operated manually by a crank handle

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 350 x 400 x 300 mm
Weight (approx.): 7 kg

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipment exporter, chemical engineering lab equipments suppliers, chemical engineering lab instruments manufacturer, chemical engineering lab equipment manufacturer, chemical engineering lab equipments supplier, chemical engineering lab equipments manufacturers in Ambala, India.

Last Updated: September 2026
