Steam Engine Model
Product Code : EL-AELE-10739

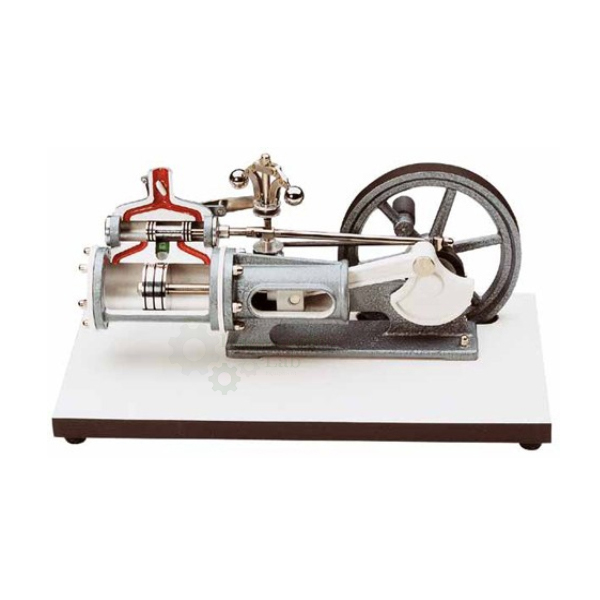

Steam Engine Model (code EL-AELE-10739) is a teaching model of a horizontal steam engine with piston valve control, showing the internal structure and operating principle of a working steam engine. Turning the flywheel sets it in motion, and its cross-sectioned metal cylinder, covered with a clear plate, shows the piston and slide valve moving while the link motion, reversing method and built-on centrifugal governor operate; the model measures approx. 450 × 350 × 300 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Classroom demonstration of the internal structure and operating principles of a working steam engine |
| Type | Horizontal steam engine with piston valve control |
| Cylinder | Metal cylinder, cross-section cut and covered with a clear plate to show piston movement |
| Working parts | Piston and slide valve both move; link motion and reversing method operate |
| Governor | Built-on centrifugal governor |
| Drive | Set in motion by turning the flywheel |
| Wheel movement | Light enough to be turned by blowing air from the mouth |
| Finish | Parts and cross-sections painted in different colours; many parts chromium plated and galvanised |
| Dimensions | Approx. 450 × 350 × 300 mm (L × W × H) |
| Weight | Approx. 9 kg |
| Product code | EL-AELE-10739 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Steam Engine Model Used For?
A steam engine converts the pressure of steam into motion: steam admitted by the valve pushes the piston along the cylinder, and the crank turns this back-and-forth movement into rotation of the flywheel. With the flywheel turned by hand, students watch through the clear plate as the piston and slide valve move, see the link motion alter the valve action when the reversing method is operated, and observe the centrifugal governor that controls speed on a running engine. The wheel turns so freely that a breath of air is enough to start it, which lets the cycle be shown slowly and repeated as often as needed.
What to Specify When Ordering
- Quantity — the number of steam engine models to be ordered.
Frequently Asked Questions
What type of steam engine is modelled?
It models a horizontal steam engine with piston valve control, built to show the internal structure and operating principles of a working engine.
Can the piston be seen moving?
Yes, the metal cylinder is cross-section cut and covered with a clear plate, so the movement of the piston inside the cylinder can be watched as the flywheel turns.
How is the model set in motion?
It is put in motion by turning the flywheel, and the wheel moves lightly enough that even blowing air from the mouth can turn it.
Which mechanisms can students observe?
Students can observe the piston and slide valve moving, the link motion and reversing method operating, and the built-on centrifugal governor.
What does the centrifugal governor do?
On a running engine its rotating weights fly outwards as speed rises and move a linkage that reduces the steam supply, which holds the engine speed steady.
What are its dimensions?
The model is roughly 450 mm long, 350 mm wide and 300 mm high, and it weighs around 9 kg.
OEM Manufacturer
Buyers of the Steam Engine Model deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests automobile engineering cut-section models, working models and trainers, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Automobile Engineering Equipment
- Wankel Engine Model — crank-turned rotary engine model with triangular rotor, cutaway carburettor and ignition lamp.
- Cut Section Model of Four Stroke Petrol Engine — dissectible 160cc, 6 hp overhead-valve petrol engine in section with flywheel, key card and literature.
- Cut Model of Planetary Gear System — hand-turned planetary gear cutaway on a carrying base plate, with drawings and technical description.
See the full Automobile Engineering Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of steam engine models required and your delivery location through the contact page, or add the Steam Engine Model to the enquiry cart from this page.
