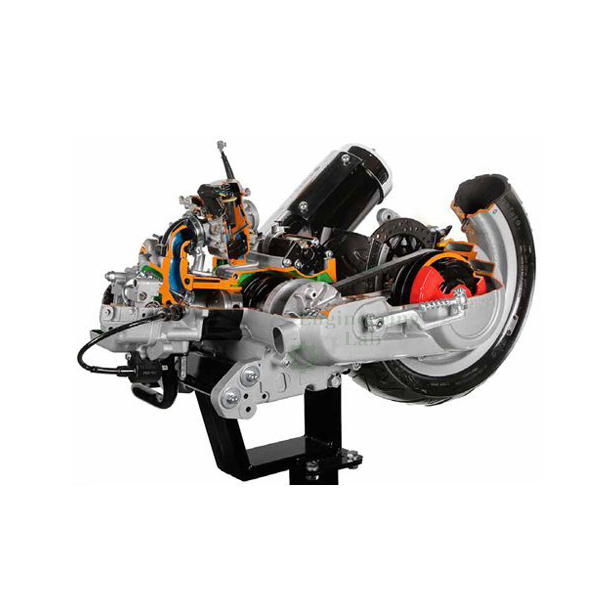

Cut Section Model of Four Stroke Petrol Engine
Product Code : EL-AELE-10724
Cut Section Model of Four Stroke Petrol Engine (code EL-AELE-10724) is a dissectible, sectioned petrol engine used to show students its internal construction and the working of the valves, piston, pumps, crank and camshaft. The 160cc, 6 hp engine has overhead valves with the camshaft in the crankcase, a carburettor, air filter, oil pump, rpm regulator, silencer and tank, is turned by a crank handle and sits with its flywheel on an iron frame of approx. 500 × 500 × 600 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Showing the internal construction of the engine and the working of valves, pistons, pumps, crank and camshaft |
| Type | Actual engine, cut in section and made dissectible for demonstration |
| Displacement | 160cc |
| Power | 6 hp |
| Valve gear | Overhead valves; camshaft in the crankcase |
| Fuel and air | Carburettor, air filter and tank |
| Lubrication | Oil pump |
| Speed control | Rpm regulator |
| Exhaust | Silencer |
| Flywheel | Provided |
| Operation | Manual, through a crank handle |
| Layout | On base; mounted on an iron frame |
| Colour coding | Different colours for the parts, cross-sections, lubricating circuits, fuel system and cooling system |
| Finish | Many parts chromium plated and galvanised |
| Supplied with | Key card and literature on its working |
| Dimensions | Approx. 500 × 500 × 600 mm (L × W × H) |
| Weight | Approx. 35 kg |
| Product code | EL-AELE-10724 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Section Model of Four Stroke Petrol Engine Used For?
A four stroke petrol engine completes induction, compression, power and exhaust in four strokes of the piston, with a spark igniting the compressed charge of petrol and air prepared in the carburettor. Turning the crank handle slowly, the instructor shows the piston moving in the bore, the overhead valves opening and closing in step with the camshaft in the crankcase, and the oil pump and rpm regulator at work. Because the engine can be dismantled, students take parts off, identify them against the key card and the colour coding of the fuel, lubricating and cooling circuits, and refit them.
What to Specify When Ordering
- Quantity — the number of sectioned petrol engines required.
Frequently Asked Questions
What engine is the model based on?
It is an actual four stroke petrol engine of 160cc displacement and 6 hp, with overhead valves, the camshaft in the crankcase and a carburettor, cut in section for teaching.
Can the model be taken apart?
Yes, it is made dissectible for demonstration purposes, so parts can be removed and identified with the help of the key card and the literature supplied with it.
How are the engine systems distinguished?
The parts, cross-sections, lubricating circuits, fuel system and cooling system are painted in different colours, and many parts are chromium plated and galvanised.
How is the engine turned over?
It is operated manually through a crank handle, and a flywheel is provided, so the piston, valves and camshaft can be moved slowly while the class watches.
What are the dimensions?
The model sits on an iron frame and measures approx. 500 × 500 × 600 mm, weighing about 35 kg.
