Power Window System Trainer
Product Code : EL-AELE-10735

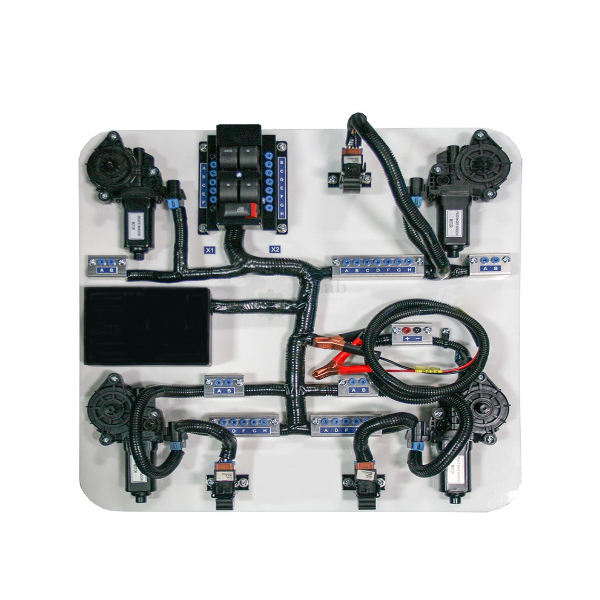

Power Window System Trainer (code EL-AELE-10735) is a four-door trainer that demonstrates a complete power window system with real world components, with central door locking and electric window switches that can be operated to show how both systems work. It has 4 OEM window motors, master and slave switches, a lockable fault box with 4 faults and terminal block test points for checking signals, resistance, voltage, current and frequency, is made of organic glass with aluminium rims and needs an external 12V DC supply.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating a complete four-door power window system with real world components |
| Components | OEM window motors and switches with OEM matching wire colours |
| Window motors | 4 |
| Switches | Master and slave switches |
| Central locking | Central door locking and electric window switches can be operated to show the working process |
| Door system | Automobile door system on the training platform |
| Construction | Organic glass with aluminium rims |
| Diagram | Diagram with real objects for learning and analysing the working principles |
| Test points | Terminal block receptacles and detection terminals for checking electric signals, resistance, voltage, current and frequency |
| Fault box | Lockable fault box with 4 faults; one to four faults can be inserted |
| Power supply | External 12V DC supply required |
| Documentation | User manual included |
| Dimensions | Approx. 600 × 600 × 300 mm (L × W × H) |
| Weight | Approx. 25 kg |
| Product code | EL-AELE-10735 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Power Window System Trainer Used For?
A power window system raises and lowers each door glass with an electric motor; the master switch at the driver's door can work every window, while each slave switch works only its own door. On the trainer, students operate the switches and watch the 4 window motors respond, then use the terminal block receptacles to measure signals, resistance, voltage, current and frequency around the circuit. The instructor can lock up to four faults into the fault box, and students compare their readings with the diagram to find each one; the central door locking is worked from the same training platform.
What to Specify When Ordering
- Quantity — the number of power window trainers needed.
Frequently Asked Questions
How many windows does the trainer operate?
It is a four-door trainer with 4 window motors, worked from master and slave switches, so the complete power window system of a car can be shown.
What can be measured at the test points?
Terminal block receptacles and detection terminals give test points for checking the electric signals, resistance, voltage, current and frequency of the circuit components.
Does the trainer include central door locking?
Yes, central door locking can be operated along with the electric window switches to show the working process of both systems.
What power does it require?
An external 12V DC power supply is needed to run the window motors and switches, and a user manual comes with the trainer.
What is the trainer made of?
It is made of organic glass with aluminium rims, carries an automobile door system and measures approx. 600 × 600 × 300 mm, weighing about 25 kg.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Power Window System Trainer at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its automobile engineering cut-section models, working models and trainers go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Automobile Engineering Equipment
- Power Door Lock System Trainer — plastic-board central locking trainer with 2 OEM actuators, relay, 4-fault box and 21 jumper leads.
- Lighting Training Board Simulator — mobile vehicle lighting system board with motorised headlight beam levelling, jumper wiring diagram and OBD diagnosis.
- Working Model of ABS Braking System — castored 4-channel ABS rig with disc and drum brakes, per-wheel gauges, breakout box and 6-fault box.
- Air Bag Trainer — training panel for SRS air bag work with light-simulated deployment, 10-fault lockable box and breakout test points.
See the full Automobile Engineering Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of power window trainers required and the delivery location through the contact page; the Add To Cart button on this page also adds the Power Window System Trainer to an enquiry.
