Section Model of Four-Stroke Diesel Engine
Product Code : EL-AELE-10736

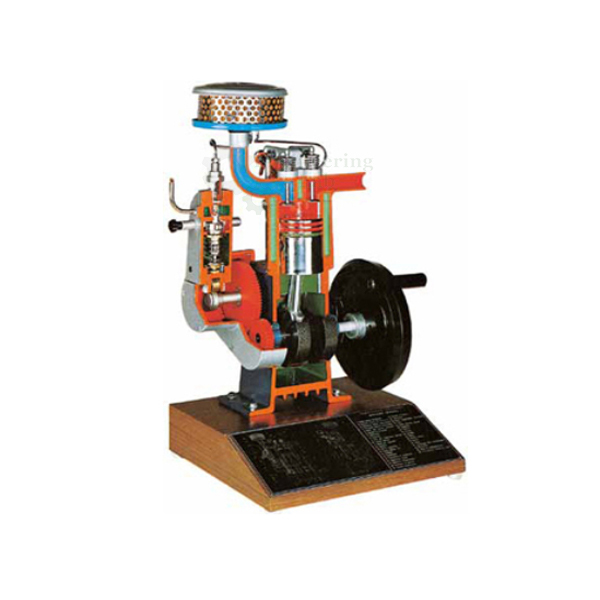

Quick Answer: This Section Model of Four-Stroke Diesel Engine is a cutaway training model that represents the internal structure and operating principle of a 4-stroke diesel engine. Internal surfaces are finished in different colors to indicate air, fuel and gas mixture, and exhaust gas contents, and a 3-volt bulb glows at the correct point in the cycle via an electrical contact system to show the engine's firing point. It features indirect injection with an injection pump, injector, pre-chamber, preheating glow plug, cooling system, and distribution circuit, along with a cam-operated jerk pump and a manually operated air inlet diaphragm injection nozzle and starting valve.
A small bulb lights up during the expansion phase to simulate the active stage of the cycle. The model is carefully sectioned for training purposes and professionally painted in different colours to clearly differentiate the various parts, cross-sections, lubricating circuit, fuel system, and cooling system. Many parts are chromium-plated and galvanized for longer life, making this a rational training model of a 4-stroke diesel engine sectioned for training purposes.
FEATURES:
Equipment Layout: On Base
Fine finish
Operated: Manually (Through a Crank Handle)
Simple operations
Functional accuracy
SPECIFICATION:
Displacement: 100cc
Power: 6 hp
Camshaft in the crankcase
Carburetor
Air filter
Silencer
Overhead valves
Rpm regulator
Oil pump
Tank
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 500 x 500 x650 mm
Weight (approx.): 25kg
