Fluid Friction Measurements Manufacturer,Supplier and Exporter in India
Product Code : EL-FMLE-10659
Engineering Lab Equipments is a leading Fluid Friction Measurements Manufacturer,and suppliers in India, Fluid Friction Measurements Manufacturer,and suppliers in South Africa.Fluid Friction Measurements Suppliers in Mozambique,Fluid Friction Measurements A quality product from Engineering Lab Equipments ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

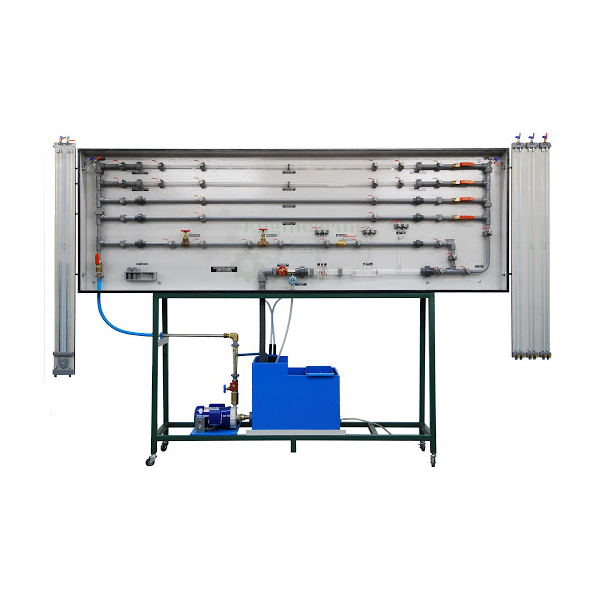

The trainer comprises three straight pipe sections made of different materials and with different diameters.
Also included are: a pipe section with pipe bends, a pipe section with contraction and enlargement and a pipe section with interchangeable valves and fittings.
Knowledge of pressure losses in various pipe elements is a key factor in designing pipe systems.
The trainer allows the determination by experiment of these important coefficients and the investigation of the pressure curve in typical pipe sections.
The large length of the pipe sections of 2,5m and the fact each section is fitted with at least five pressure measuring points means it is possible to obtain very accurate measurements and demonstrate the linear reduction in pressure in a pipe.
A Rota meter and a volumetric measuring tank are included for comparison measurements and calibrations.
The volumetric measurement using a stopwatch gives highly accurate results even at low flow rates.
Tube manometers, a Bourdon tube pressure gauge and a differential pressure sensor are provided for pressure and differential pressure measurements.
The pressure measuring points are designed as annular chambers for accurate pressure measurement.
A movable manometer panel saves space and allows for optimal accessibility.
The trainer includesa closed water circuit with tank and submersible pump.
This means the trainer can be used independent of the laboratory network.
FEATURES:
Investigation of pressure losses
Three long pipe sections made of copper and steel with different diameters
Easy pressure measurement via annular chambers
Pressure and differential pressure measurement with 8 tube manometers, Bourdon tube pressure gauge and electronic differential pressure sensor
Flow measurement via Rota meter and volumetric measuring tank
Pipe section with pipe bends
Pipe section with sudden contraction and enlargement
Pipe section with interchangeable fittings with different opening characteristics: needle valve, shut-off valve, ball valve
Determination of the pressure curve along the measuring section with up to 8 pressure measuring points
Closed water circuit with tank and submersible pump
Stainless steel tank
SPECIFICATIONS:
-4 smoothbore pipes of different diameters ranging from 4.5mm I.D. to 17.2mm I.D.
38 tapping points
Artificially roughened pipe
90° bends (large & small radii)
90° elbow
90° mitre
45° elbow, 45° Y, 90° T
Ball valve
Inline strainer
Sudden enlargement
Sudden contraction
Gate valve
Globe valve
Perspex Venturi
Perspex orifice meter
Perspex pipe section with a Pitot tube & static tapping
Measuring ranges :
Pressure: -1…1,5bar
Differential pressure: 1x 0…+/-350mbar, 8x 0…1000mmWS
Flow rate: 1x 400…4000L/h
230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 800-x800 x 1200 mm
Weight: 120kg
Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.
