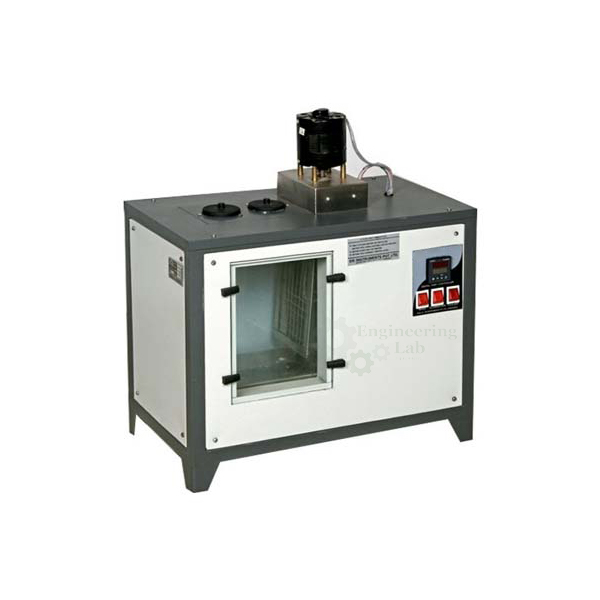

Kinematic Viscosity Bath
Product Code : EL-FTLE-10902
Quick Answer: The Kinematic Viscosity Bath uses calibrated capillary viscometers to measure fluid flow under gravity or vacuum at precisely controlled temperatures, a property of primary importance in the design and selection of petroleum products. It offers microprocessor temperature control from ambient to 150°C (302°F), integrated digital timing of sample efflux times, automatic viscosity calculation from entered viscometer constants, and seven viscometer ports, conforming to ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; and NF T 60-100.
Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products; calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures.
Features:
Microprocessor temperature control between ambient and 150 °C (302 °F)
Integrated digital timing for easy measurement of sample efflux times
Permits entry of viscometer constants for automatic calculation and display in viscosity units or seconds
Dual digital displays show setpoint and actual bath temperature
Selectable temperature scale – Fahrenheit or Celsius
Conforms to ASTM D445, D2170 and related specifications
Specifications:
Conforms to the specifications of: ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
Temperature Control Range: ambient to 150°C (302°F); sub-ambient to 10°C with external cooling
Bath Medium: Water or suitable heat transfer fluid
Control accuracy and uniformity: Exceeds ASTM requirements throughout the operating range
Display: 0.1 °C / 0.1 °F resolution, calibrate to 0.01 °C / 0.01 °F
Timing: Integrated timing function within Touch Screen Control Panel: displayed to 0.1 seconds and accurate within 0.01%
Communication: RS232, RS485 port
Viscometer ports: Seven round 2″ (51mm) ports
Bath Capacity:
12″: 5.8 gal (22L)
18″: 8.9 gal (33.7L)
Dimensions :
lxwxh,in.(cm):
12″ Bath: 20 ¼ x 15 ¼ x 24 ½ (51x39x62)
18″ Bath: 20 ¼ x 15 ¼ x 30 ½ (51x39x77)
Net Weight:
12″ Bath Net Weight: 78 lbs (35.5kg)
18″ Bath Net Weight: 90 lbs (41kg)
Standard: ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
