Cleveland Flash Point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-FTLE-10892

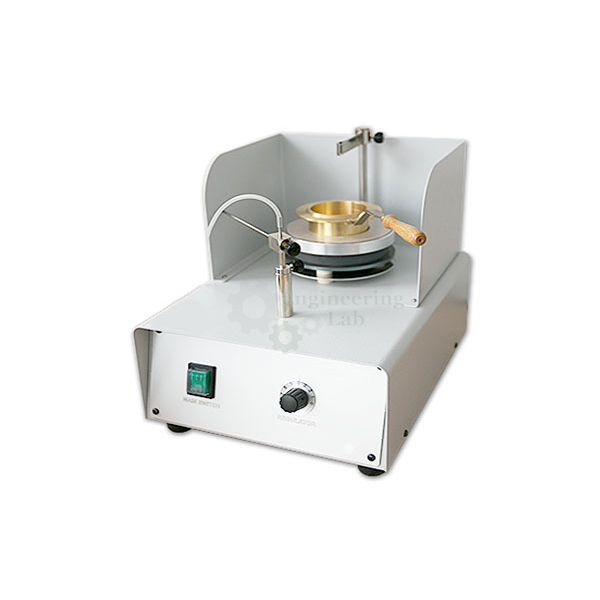

The Seta Semi-Automatic Cleveland Open Cup flashpoint Tester is equipped with an electrically heated cup (with a variable control to set temperature rise rate), a button-operated and electrically driven sweep arm and a test flame which uses either mains or Portable Gas Tank.
Easy to clean stainless steel case.
Key Specifications/Special Features:
This instrument is designed and made as per GB/T3536-2008 petroleum products.
Determining flash and fire points, Cleveland open cup method and ASTM D92 standard test method for flash and fire points.
Applicable for all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.
Main technical features:
Adapts special heating furnace to ensure the safety of test
The heating power is continuously adjustable
The instrument adapts desktop structure
The stainless steel working table and furnace shell make it beautiful and elegant
The instrument is fully self-contained complete
The operator can do determination as long as connecting with coal gas or other civil gas
It can meet requirements of test
It equipped with flame extinguishing cover which accords with requirements of tests.
Main technical specifications and parameters:
Ambient temperature: (-10 – 50)℃
Power supply: AC (220 ±10%)V, 50Hz
Heating device: Quartz tube furnace heating, no naked fire, explosion prevented
The power is adjustable from 0W to 600W
Test flame applicator: applies the test flame automatically
Thermometer: (-6 – 400)°C
It is the same as thermometer ASTM 11C.
Relative humidity: ≤85%
Overall power consumption: ≤650W
Overall dimensions: 350mm*290mm*350mm (thermometer is not included)
Igniting Device:
Ignition Source: coal gas (or civil gas, the same below)
Flame diameter is 3.2mm – 4.8mm
Standard: AASHTO T48, ASTM D92, BS 2000 Parts 36 & 403 (obs), EN ISO 2592, FTM 791 1103.7, IP 36, JIS K2265, NF T60-118
