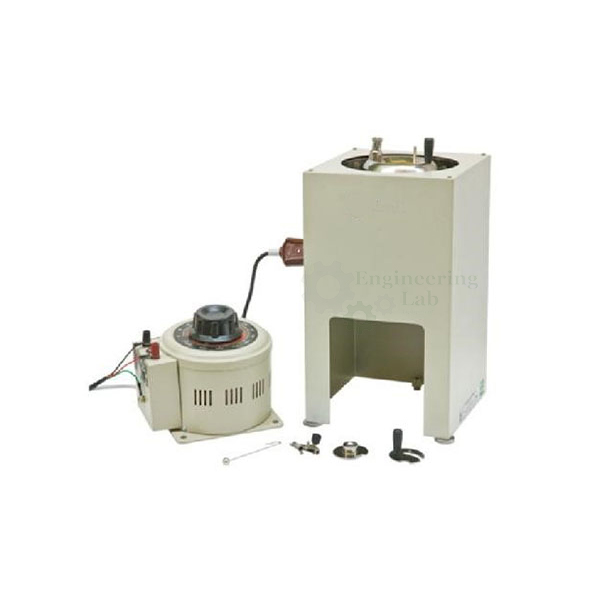

Red Wood Viscometer
Product Code : EL-FTLE-10888
Quick Answer:
The Red Wood Viscometer is a stainless-steel instrument, built to IP 70 requirements, for accurate liquid viscosity testing. Digital temperature regulation, an over-temperature alarm and an insulated double wall protect the operator, while a visible single-gage fill point, an internal low-liquid indicator, a stainless-steel heater with cooling coil and a motorized stirrer make filling, boiling, cooling and stirring quick and safe; an in-bath drain plug then allows easy post-test drainage. Supplied in Redwood orifice No.1 (for flow times of 20-2000 seconds, up to 95°C) or No.2 (for flow times above 2000 seconds, up to 250°C), in 1, 2 or 3-position models, each complete with a brass oil cup, closing-ball-ended rod, cup cover and levelling screws, the roughly 7-litre, 12kg unit is rugged enough for field portability as well as laboratory use.
The simple design of the Redwood viscometer conforms to standard IP 70 requirements while providing accurate measurements for viscosity tests. The stainless steel Redwood viscometer is equipped with digital temperature regulation, an over-temperature alarm, and an insulated double wall, because operator safety is a priority. A single gage fill point, visible from the outside of the instrument, allows for easy filling without overflow, while an internal indicator alerts to low liquid levels; the stainless steel electric heating component and cooling coil allow for quick boiling and cooling of liquids, while the motorized stirrer removes the need for dangerous and intensive manual labour during a viscosity test. With a capacity of approximately 7 litres and a weight of 12 kg (26.45 lbs.), the ruggedly-built Redwood allows for sturdy portability during field use as well as laboratory-quality temperature and viscosity measurements. The viscometer is available in either Redwood orifice no. 1 or orifice no. 2, ensuring testability for liquids with a flow of 20-2000 seconds or 2000+ seconds, respectively. Each model is available with 1, 2, or 3 positions, and comes equipped with a brass oil cup with closing-ball ended rod, cup cover, and levelling screws to ensure accurate results; the in-bath drain plug provides for easy post-test drainage of liquids.
TECHNICAL SPECIFICATIONS:
Applicable Test Methods: IP 70
Stability: ±0.1°C
Bath capacity: 7 about liters
Power supply: 230V ±3% 50/60Hz
Weight: 12 kg
Temperature :
from ambient to 95°C (203°F) for no.1
from ambient to 250°C (482°F) for no.2
Power :
800W for no.1
1200W for no.2
Dimension :
No.1: 40x29x64 cm
No.2: 40x29x61 cm
Standard: IP 70
