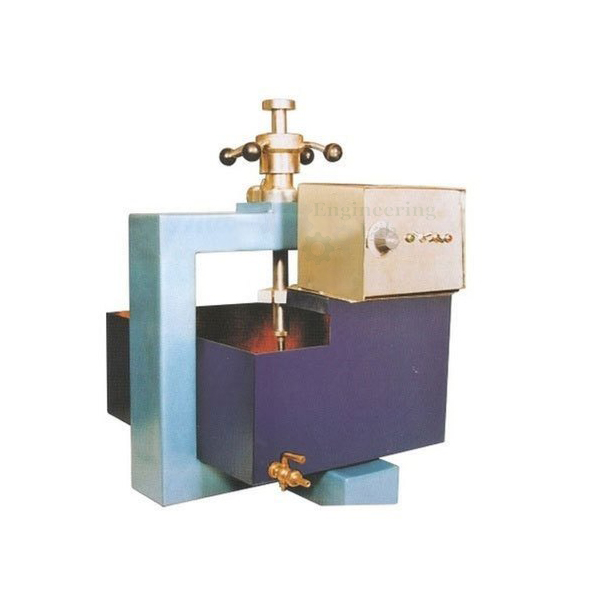

Mastic Asphalt Tester

Mastic Asphalt Tester

Product Code : EL-BTLE-10441

Quick Answer: The Mastic Asphalt Tester determines the hardness number of mastic asphalt for flooring per IS 1195. It consists of an internally insulated cabinet with a two-tap water bath at its base, heated by an immersion heater and thermostatically controlled at 35° +/- 0.5° C; a 6.5mm dia pin is loaded onto the specimen via a lever to give a 31.7 Kg weight, and a 0.01 x 25 mm dial gauge records the pin’s penetration into the specimen.

It consist of an internally insulated cabinet to the base of which is fitted a water bath having two taps. The bath is heated by an immersion heater and the temperature is controlled with the thermostat at 35 ° +/- 0.5° C. A 6.5mm dia pin is loaded on the specimen by means of a lever to give a 31.7 Kg weight, and a dial gauge 0.01 x 25 mm is provided to record the penetration of pin into the specimen, for determining the hardness number of Mastic Asphalt for flooring.

Standards: IS 1195

For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Standard Penetrometer, Digital Penetrometer, Ring and Ball Apparatus, Ductility Testing Apparatus
