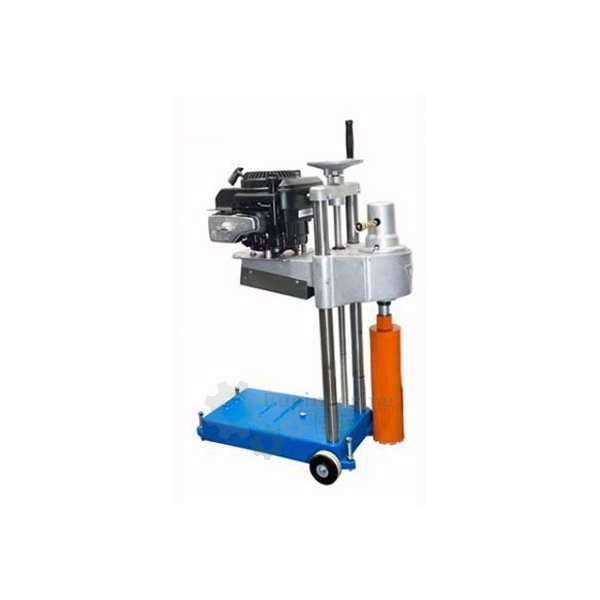

Core Drilling Machine (Petrol)
.jpg)
Product Code : EL-BTLE-10420
Quick Answer: The Core Drilling Machine (Petrol) is a petrol-engine-powered pavement core drill that cuts cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. It uses a 6.5 Hp 4 stroke petrol engine mounted on a vertical support column, with a ball screw mechanism for close control of drilling pressure and rapid return, a water spraying assembly, and a rigid wheel mounted metal base frame with leveling and fixing facility for on-site use.
The Pavement core drilling machine is produced to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly, and the motor assembly comprises a 6.5 Hp 4 stroke petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return, and a water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation. Coring Bits should be ordered separately.
| Technical Specifications | |
|---|---|
| Drill speeds | 900 R.P.M. for soft samples and 350 R.P.M. for hard Samples |
| Head travel on rack | 500mm |
| Water swivel | Built in the machines. |
| Dimension approx, are as under | |
| Height | 1300 mm |
| Base | 625 x 900 mm |
| Accessories | |
| Thin wall diamond bits. | |
| Core barrel. | |
| Petrol engine 190 cc | |
| Standards | EN 12697-27 |
For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
