Flow Cone Apparatus

Flow Cone Apparatus

Product Code : EL-CTLE-10360

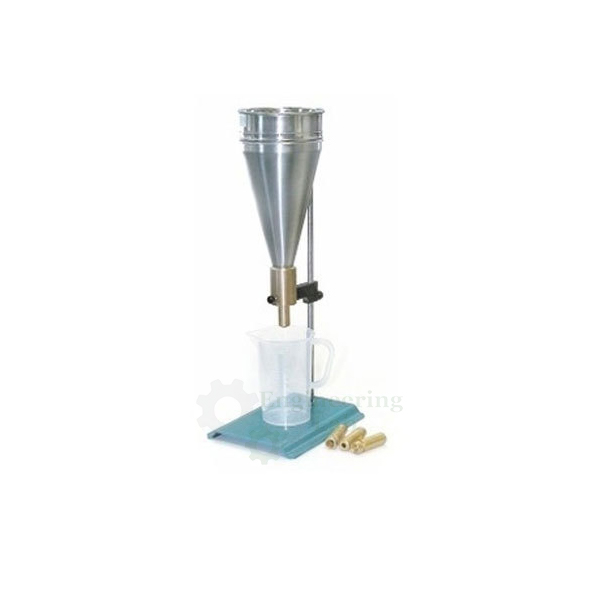

The apparatus comprises a metal stand supporting the stainless steel cone having inside dimensions of 150 mm inside upper dia. x 280 mm height.
When fit with the 10 mm nozzle the total height is 350 mm.
Used for determining the flow properties of mortars, grouts, muds and many other type of fluid materials.
The apparatus, as prescribed by EN 445, is supplied complete with 150 mm dia. sieve 1.5 mm opening, 10 mm dia. nozzle with fitting bush and 1 liter cap. cup.
It can also be fit with other nozzles 8, 9, 11, and 13 mm int. dia.
Weight approx.: 10 kg

Accessories :
Stand
Flow Cone,
Sieve 1,5 mm,
Nozzle 8, 9, 10, 11 and 13 mm
Cup 1 lt
Fitting Bush

Standards: EN445 | NFP18-358 | NFP18-507
