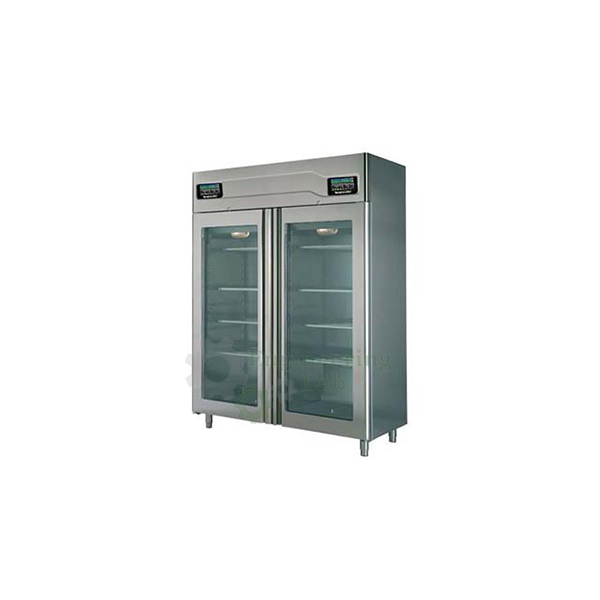

Cement Curing Cabinet
Product Code : EL-CTLE-10365
Cement Curing Cabinet (code EL-CTLE-10365) is a humidity cabinet for curing cement, concrete and mortar specimens under controlled conditions. A water nebulizer holds humidity from 95% to saturation and an immersion heater with a separate refrigerator unit keeps the temperature at 20±1 °C; the chemical-resistant polypropylene frame has transparent glass front doors and four stainless steel racks, draws about 1700 W and measures 1115 × 435 × 1500 mm inside.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Curing cement specimens; also concrete cubes and other mortar specimens |
| Frame | Polypropylene structure, chemical resistant |
| Front doors | Transparent glass |
| Humidity | From 95% to saturation, by a water nebulizer |
| Temperature | 20±1 °C, by an immersion heater and a separate refrigerator unit |
| Internal racks | Four stainless steel racks supporting moulds with specimens and a large number of cement prisms |
| Curing in water | Possible using a plastic pan |
| Services | Must be connected to a suitable air compressor |
| Power | Approx. 1700 W |
| Internal dimensions | 1115 × 435 × 1500 mm (l × d × h) |
| External dimensions | 1160 × 550 × 1900 mm |
| Standards | ASTM C109, ASTM C511, EN 196-8, EN 196-1, EN ISO 679 |
| Product code | EL-CTLE-10365 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cement Curing Cabinet Used For?
Cement and mortar specimens gain strength by hydration, which needs moisture and a steady temperature, so test specimens are kept in moist air from casting until they are demoulded. Moulds holding freshly made specimens are set on the stainless steel racks, the glass doors are closed, and the cabinet keeps the air close to saturation with its nebulizer while the heater and refrigerator unit hold it at 20 °C. After demoulding, prisms can go back on the racks or be cured under water in a plastic pan inside the cabinet until they are due for strength testing.
What to Specify When Ordering
- Quantity — the number of cabinets required.
- Plastic pan — whether a plastic pan for curing specimens in water is wanted.
Frequently Asked Questions
What conditions does the Cement Curing Cabinet maintain?
Its water nebulizer keeps the humidity between 95% and saturation, while an immersion heater and a separate refrigerator unit together hold the air at 20±1 °C.
What can be cured in it?
It takes moulds with cement specimens and a large number of cement prisms on its four stainless steel racks, and it can also cure concrete cubes and other mortar specimens.
Can specimens be cured under water?
Yes. Using a plastic pan placed inside the cabinet, specimens can be cured in water instead of in the humid air.
What is the cabinet built from?
The frame is a chemical-resistant polypropylene structure, the front doors are fitted with transparent glass, and the four internal racks are stainless steel.
What services and space does it need?
It must be connected to a suitable air compressor and draws approximately 1700 W; it measures 1160 × 550 × 1900 mm outside and 1115 × 435 × 1500 mm inside.
Which standards are listed for it?
The standards listed for the Cement Curing Cabinet are ASTM C109, ASTM C511, EN 196-8, EN 196-1 and EN ISO 679.
OEM Manufacturer
The Cement Curing Cabinet is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests cement testing equipment such as Vicat and Blaine apparatus, moulds, mixers and curing equipment for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Cement Testing Equipment
- Length Comparator — two-column steel frame with adjustable anvil and 12.5 × 0.001 mm digital gauge for mortar specimens.
- Hydraulic Shrinkage Mould — three gang alloy steel mould, HV200 minimum hardness, for cement mortar and grout shrinkage specimens.
- Blaine Fineness Apparatus — air permeability set for cement fineness with stainless steel cell, glass U-tube manometer and aspirator.
- Hydraulic Shrinkage Mould 25x25x285 mm — two gang mould casting 25 × 25 × 285 mm shrinkage prisms with contact points.
See the full Cement Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of cabinets and whether a plastic pan for water curing is needed and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
