Rotary Shaker

Rotary Shaker

Product Code : EL-LEAA-10995

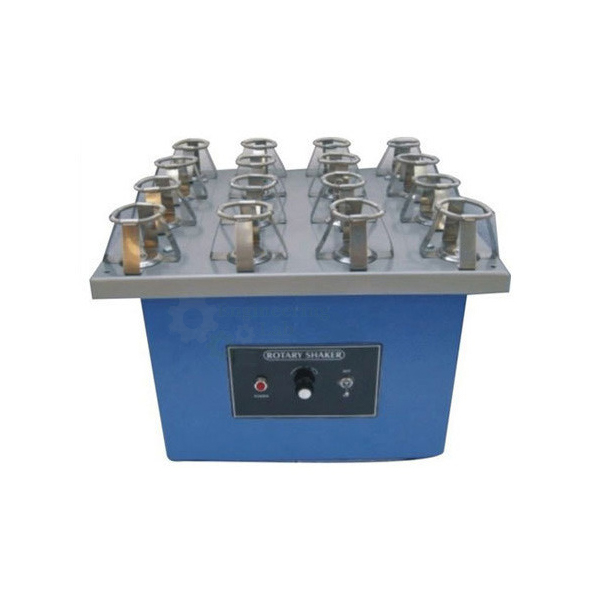

Quick Answer: This Rotary Shaker has a heavy mild steel, painted or powder-coated fabricated frame with a uniform platform that accepts interchangeable clamps for flasks of different sizes and capacities. Its counter-balanced drive gives high stability and reliability, running at a variable speed of 100 to 180 RPM (or 20 to 180 RPM as per requirement) via an induction motor, on single-phase 220/230V AC power with a continuous duty cycle.

This Rotary Shaker uses a heavy mild steel fabricated assembly frame, duly painted or powder coated, with a uniform platform that accommodates interchangeable clamps of different sizes for different capacities of flask. Its counter balanced drive ensures high stability and reliability in regular operation, with both fixed and variable speed available from a free maintenance induction drive motor; variable speed ranges from 100 to 180 RPM and 20 to 180 RPM as per requirement. It provides 19mm diameter uniform circulation to the load platform in the horizontal plane, and a 25mm dia. uniform circulation motion in the horizontal plane for heavy duty Rotary Shaker.

Technical Parameters
Housing MaterialFabricated assembly with heavy Mild Steel, unit duly painted or powder coted.
Duty CycleContinuous
Power ConsumptionSingle Phase AC Supply 220/230V AC supply +- 10%
Optional
Digital RPM meter with DC drive
Spare Tray for above unit different capacity

For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
