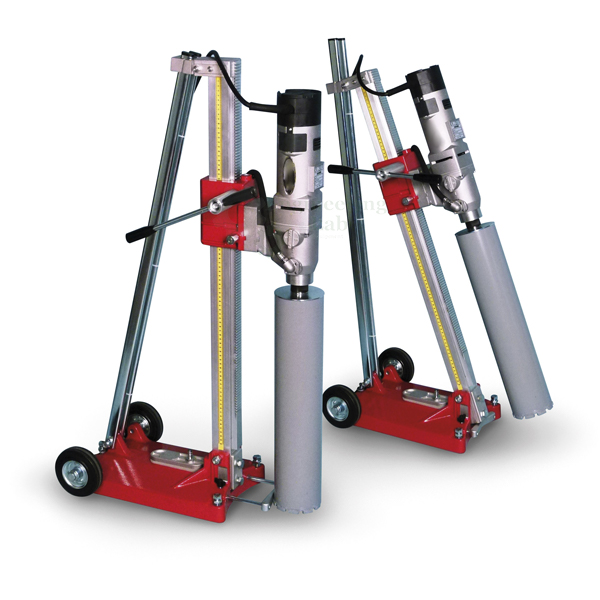

Core Cutting/Core Drilling Machine (Motorized)
.jpg)
Product Code : EL-RTLE-10498
Core Cutting/Core Drilling Machine (Motorized) (code EL-RTLE-10498) is an electric core drill for drilling cores in concrete, reinforced concrete, asphalt and brick in construction work. It takes bits from 25 mm to 150 mm diameter, runs on ~220 V / 50 Hz with a 2800 W power input and a no-load speed of 840 rpm, and has a friction clutch and overload current protection for the motor.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Features | |
| Application | Concrete, reinforced concrete, asphalt and brick in construction |
| Build | Compact size and light weight |
| Gear | High-strength gear |
| Motor protection | Friction clutch and overload current protection |
| Water swivel seal | Out-setting water swivel seal, for replacement when the seal is worn |
| Bit capacity | 25 mm dia to 150 mm dia |
| Specifications | |
| Rated voltage | ~220 V / 50 Hz |
| Max. bit diameter | 50 mm / 100 mm / 150 mm |
| Power input | 2800 W |
| No-load speed | 840 rpm |
| Shaft (male) | 1 1/4 inch UNC |
| Complete combination | |
| Included parts | Drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, out-setting water swivel seal and hydraulic system |
| Optional parts | Water pump, rod for ceiling jack, water container, adapters |
| Supply | |
| Product code | EL-RTLE-10498 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Core Cutting/Core Drilling Machine (Motorized) Used For?
Core drilling cuts a cylindrical sample out of hardened concrete, asphalt or masonry so that it can be examined or tested in the laboratory. On site, the drill is set up on its base and column, the bit is lowered to the surface by the carriage and rack, and water fed through the water swivel cools the bit while the motor turns it at a no-load speed of 840 rpm. The friction clutch slips if the bit jams, and the overload protection guards the motor. The optional rod for a ceiling jack braces the column, while the water pump and water container supply water where there is no tap.
What to Specify When Ordering
- Quantity — the number of core drills required.
- Bit sizes — the core bit diameters needed, within the 25 mm to 150 mm capacity.
- Optional parts — whether the water pump, rod for ceiling jack, water container or adapters are wanted.
Frequently Asked Questions
What materials can this core drill cut?
It is intended for drilling cores in concrete, reinforced concrete, asphalt and brick on construction work.
What bit sizes does the machine take?
Its bit capacity is 25 mm to 150 mm diameter, with maximum bit diameter figures of 50 mm, 100 mm and 150 mm in the specification.
What are the electrical ratings?
The drill is rated at ~220 V / 50 Hz, with a power input of 2800 W and a no-load speed of 840 rpm.
How is the motor protected?
A friction clutch and overload current protection are fitted to protect the motor, for example if the bit binds in the material while drilling.
What parts make up the complete drill?
The set includes the drill motor, base, column, carriage, control panel, friction clutch, motor mount plate, rack, gear-box, water swivel seal and hydraulic system; a water pump, ceiling jack rod, water container and adapters are optional.
What information is needed for an export enquiry?
State the quantity and optional parts, the destination country and port or city, the delivery terms wanted such as FOB or CIF, any packing requirements and any tender reference.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Core Cutting/Core Drilling Machine (Motorized) at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its rock testing equipment for specimen preparation, strength and durability tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
