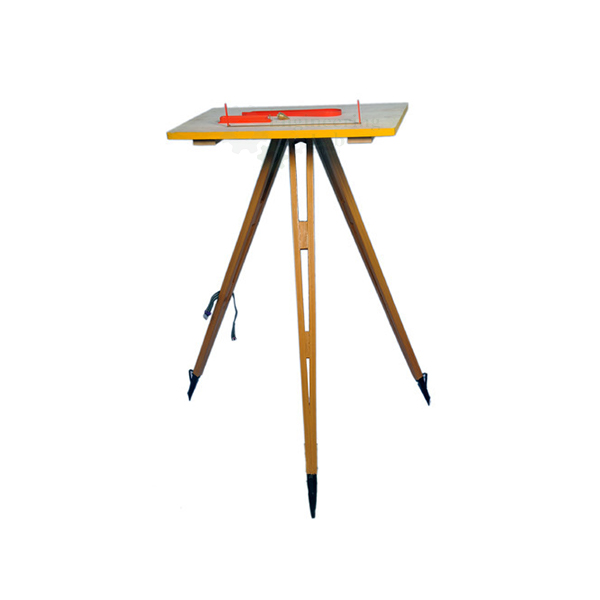

Plane Table Set

Plane Table Set

Product Code : EL-SLE-10987

Quick Answer: A Plane Table Set is used in surveying and related disciplines to provide a solid, level surface on which to make field drawings, charts, and maps. The table is set over a point and brought to a precise horizontal level, a drawing sheet is attached to its surface, and an alidade -- in the modern version supplied, a ruler fitted with a telescopic sight -- is used to sight objects of interest and construct a line on the drawing in the direction of that object.

A plane table set is used in surveying and related disciplines to provide a solid and level surface on which to make field drawings, charts, and maps. The plane table is set over a point and brought to a precise horizontal level, a drawing sheet is attached to the surface, and an alidade is used to sight objects of interest. We provide the modern type of the instrument, a ruler with a telescopic sight, that can be used to construct a line on the drawing in the direction of the object of interest.

For this and other surveying lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Prismatic Compass, Square Hole Form, Safety Helmet, Corner Guard, Range Pole, Prism with Pole
