Wheel and Axle Apparatus

Wheel and Axle Apparatus

Product Code : EL-AMLE-10642

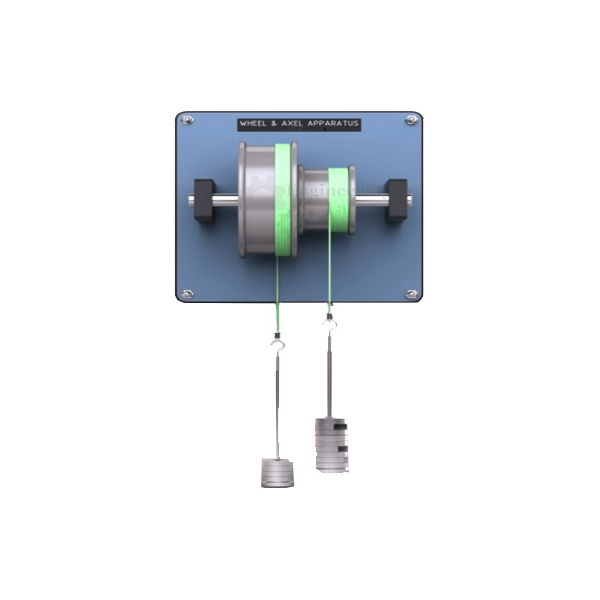

The model demonstrates the conditions of equilibrium on a differential pulley block.
Easy to interchange weights permit the load to be varied such that equilibrium is obtained.
Three anodized aluminium pulleys of different diameter are fitted to a shaft mounted on ball bearings.
The forces act, on the one hand, directly on the peripheral of the largest pulley, on the other hand, via a loose pulley on two smaller pulleys.
The model is intended for wall mounting.

Learning Objectives / Experiments :
Equilibrium of forces
Equilibrium of moments
Relationship between force reduction and cord travel

Specification :
Experiment on the equilibrium of forces and moments on a differential pulley block
3 pulleys made of anodised aluminium
2 sets of weights
Ball bearing mounted steel shaft
Anodized aluminum base plate

Technical Data :
Pulley diameter :
D=250mm
D=100mm
D=50mm

Set of weights :
2x 1N (hanger)
4x 0.5N
4x 1N
4x 2N
4x 5N

Loose pulley :
D=75mm

Base plate (wxh): 300x250mm
Hole spacing: 280x230mm, D=10mm

Dimensions and Weight :
l x w x h: 300 x 280 x 250 mm
Weight: approx. 15 kg
