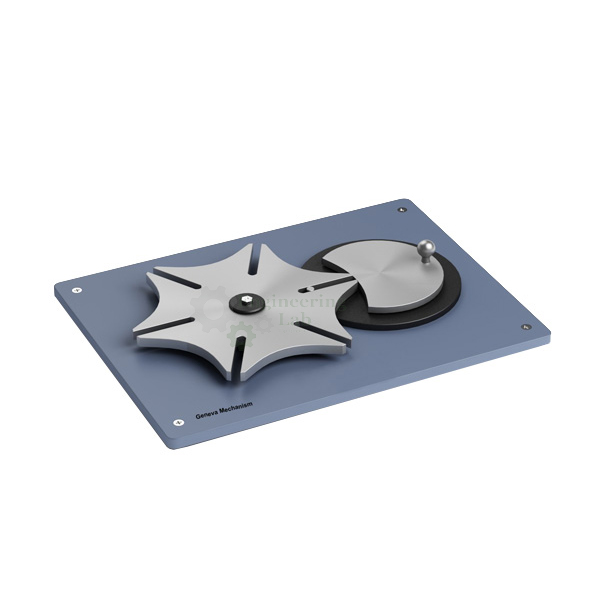

Geneva Mechanism

Geneva Mechanism

Product Code : EL-AMLE-10628

It is a commonly used mechanism for producing an intermittent rotary motion from a uniform input speed.
As the drive wheel turns it enter the slots of the driven, or star, wheel and the mechanism enter its motion period.
As the pin leaves the slot the drive wheel has been indexed and it continues to stay stationary until the pin rotates back around.
The driven member, or star wheel, contains evenly spaced slots into which the roller of the driving crank slides into.

Contact ELE for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.
