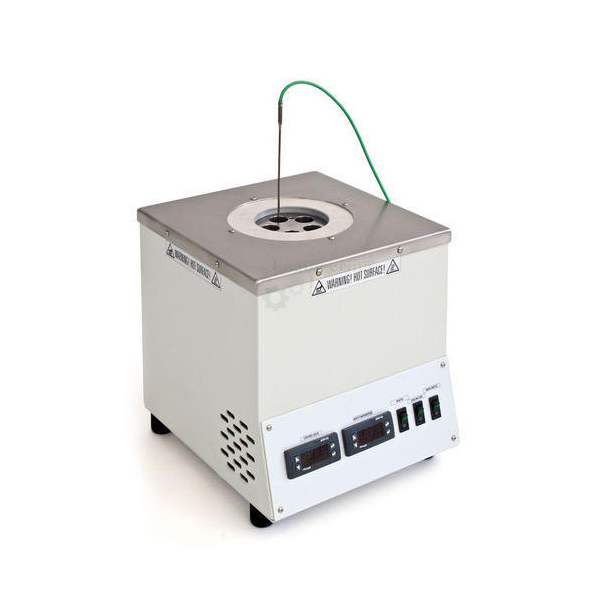

Ramsbottom Carbon Residue Apparatus
Product Code : EL-FTLE-10900
Quick Answer: The Ramsbottom Carbon Residue Apparatus determines the carbon residue left after evaporation and pyrolysis of a sample oil in a Ramsbottom furnace, indicating the deposit-forming tendencies of fuels for refinery processing guidelines. It uses a thermostatically controlled, cast-iron block furnace that reaches the standard 550°C (1022°F) test temperature rapidly and holds ±1°C stability across five coking bulbs, with microprocessor °C/°F switchable digital control and an automatic over-temperature cut-off. It conforms to ASTM D524, D6074; IP 14; ISO 4262; FTM 791-5002; and NF T 60-117.
Test Method:
Determines the ‘carbon residue’ left after evaporation and pyrolysis of a sample oil in the Ramsbottom furnace, providing an indication of the deposit forming tendencies of fuels and guidelines for the processing of refinery products.
Ramsbottom Carbon Residue Apparatus:
The Ramsbottom Carbon Residue Apparatus features microprocessor temperature control with a °C/°F switchable digital setpoint and display, and a thermostatically controlled coking furnace for five samples, housed in a heavily insulated stainless steel cabinet with a three-layer refractory top for heat retention. The cast-iron block type furnace reaches the standard test temperature of 550°C (1022°F) rapidly and controls with ±1°C stability; operator and equipment are protected by an over temperature control circuit which automatically interrupts power to the unit should block temperature exceed the programmed cut-off point. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options.
| Specifications | |
|---|---|
| Conforms to the specifications of | ASTM D524, D6074; IP 14; ISO 4262; FTM 791-5002; NF T 60-117 |
| Furnace Type | Cast iron block |
| Capacity | 5 coking bulbs |
| Controller Sensitivity | ±1°C (± 2°F) |
| Maximum Temperature | 650°C (1200°F) |
| Heater | 0-2400W, ceramic band heater |
| Electrical Requirements | 115V 60Hz, Single Phase, 20.8A; 220-240V 50/60Hz, Single Phase, 10.9A |
| Dimensions | |
| Lxwxh,in.(cm) | 16×21.1/2×14.1/2 (41x55x37) |
| Net Weight | 64 lbs (29kg) |
| Standard | ASTM D524, D6074; IP 14; ISO 4262; FTM 791-5002; NF T 60-117 |
For this and other fuel testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
