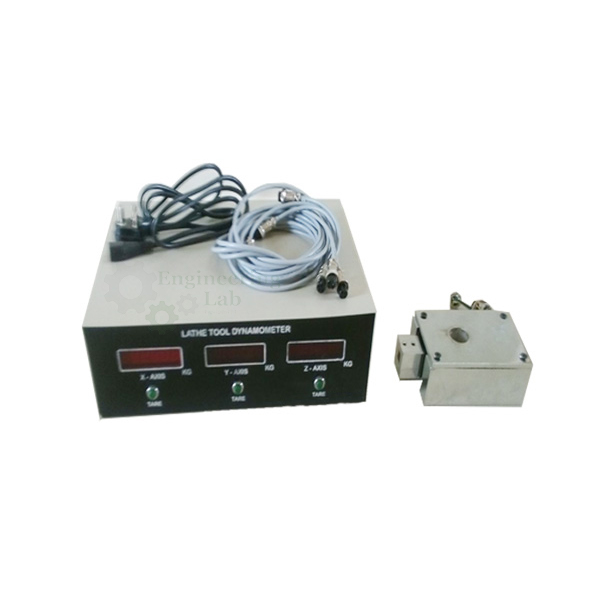

Lathe Tool Dynamometer
Product Code : EL-MAILE-10863
Quick Answer: A Lathe Tool Dynamometer is an instrument used to measure the cutting forces on various lathe machines, measuring and displaying all three (X, Y and Z) direction forces simultaneously via three individual digital indicators, with a capacity up to 500 Kgf per direction (also available in other capacities as per customer requirement). It helps study and analyse the optimum feed, speed, and depth of cut on different materials.
Lathe tool dynamometers are used to measure cutting forces on various machines, with all three-direction forces measured simultaneously and displayed; the dynamometers are also available in various capacities as per customer requirement. Tool dynamometers are useful to study and analyse the optimum feed, speed and depth of cut on different materials.
FEATURES:
The instrument comprises of a lathe tool dynamometer, which can be mounted on any conventional lathe machine.
It has three Digital indicators to individually indicate the forces in X, Y & Z direction.
SPECIFICATION:
Capacity: up to 500 Kgf in X, Y & Z direction
Tool Size: 20 mm square
Dynamometer mounting hole: 25 mm dia Hole to mount sensor on tool post.
Sensor Type: Strain gauge based
Connection: 9 pin D connector with shielded cable, 3 meter length.
Housing: Metal Enclosure with chrome plating.
Display: 3 independent for X, Y & Z force, 3 digit LED display.
Power: 230V 50 Hz
Enclosure: Powder coated metal box, 400(L) x 300(W) x 100(H)
Resolution: 1 kg for all the 3 components.
Recorder o/p: Analog output to connect any recorder, or data logger provided.
Zero Balancing: Coarse and fine potentiometer on front panel.
Accessories: 20mm HSS tool bit - 1 No.
