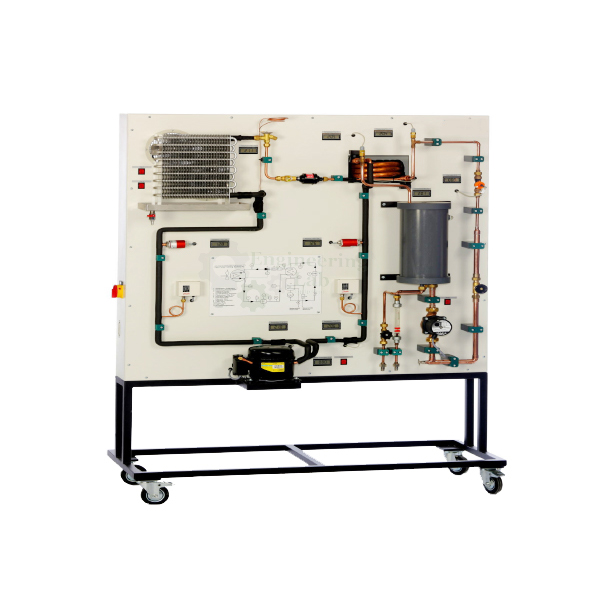

Bench Top Mechanical Heat Pump Trainer
Product Code : EL-RAACLE-10785
Quick Answer:
The Bench Top Mechanical Heat Pump Trainer is an air-to-water heat pump unit whose main components -- a compressor, an evaporator with fan, a thermostatic expansion valve, and a coaxial coil heat exchanger as condenser -- are clearly arranged for continuous operation via an external cooling water connection. Compressed refrigerant vapour condenses in the outer pipe of the condenser and discharges heat to water in the inner pipe, while liquid refrigerant evaporates at low pressure in the finned tube evaporator and absorbs heat from the ambient air. A hot water circuit made up of a tank, a pump, and the condenser as heater delivers the heated water, with the cooling water flow rate set via a valve and measured.
Overview:
The air-to-water heat pump trainer consists of a compressor, an evaporator with fan, a thermostatic expansion valve, and a coaxial coil heat exchanger as condenser, with all components clearly arranged in the trainer. For continuous operation the generated heat is dissipated via an external cooling water connection: the compressed refrigerant vapour condenses in the outer pipe of the condenser and thereby discharges heat to the water in the inner pipe, while the liquid refrigerant evaporates at low pressure in the finned tube evaporator and thereby absorbs heat from the ambient air. The hot water circuit consists of a tank, a pump, and the condenser as heater, and the cooling water flow rate is set via a valve and measured.
FEATURES:
Design and operation of an air-to-water heat pump
Representation of the thermodynamic cycle in the log p-h diagram
Energy balances
Determination of important characteristic variables
Compressor pressure ratio
Real coefficient of performance
Dependence of the real coefficient of performance on the temperature difference (air-to-water)
Operating behavior under load
Ideal coefficient of performance
SPECIFICATION:
Compressor :
Capacity: 372W at 7,2/32°C
Coaxial coil heat exchanger (condenser) :
Refrigerant content: 0,55L
Water content: 0,3L
Finned tube evaporator :
Transfer area: approx. 0,175m2
Pump :
Max. Flow rate: 1,9m3/h
Max. Head: 1,4m
Hot water tank volume: approx. 4,5L
Refrigerant: R134a/22/A
Filling volume: 1kg
CO2-equivalent: 0,6t
Measuring ranges :
Pressure: 2x -1…15bar
Temperature: 4x 0…100°C, 2x -100…100°C
Power: 0…6000W
Flow rate: 0…108L/h (water)
Flow rate: 10…160L/h (cooling water)
Required for operation :
230V, 50Hz, 1 phase
230V, 60Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1600 x 800 x 1600 mm
Weight (approx.): 185 kg
For this and other refrigeration and air conditioning lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
