Marcet Boiler Test Setup
Product Code : EL-TELE-10712

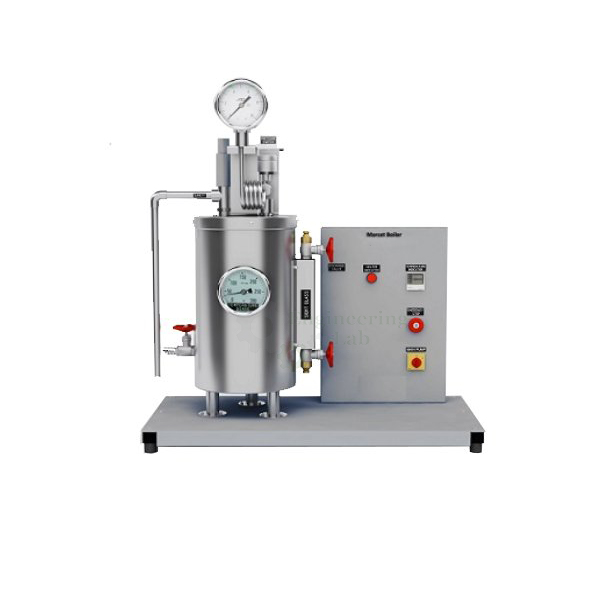

Marcet Boiler Test Setup (code EL-TELE-10712) is a closed, fluid-filled experimental boiler used to record the vapour pressure curve of water and show how pressure rises with temperature in a closed system. The 2 L stainless steel boiler is heated by a 2 kW heater to temperatures of up to 200 °C, with a digital temperature display and a Bourdon tube pressure gauge, and a temperature limiter and safety valve guard against overpressure.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Boiler | Stainless steel, 2 L |
| Heater | 2 kW |
| Maximum temperature | Up to 200 °C for recording the vapour pressure curve |
| Pressure gauge | Bourdon tube, -1 to 24 bar |
| Temperature display | Digital |
| Temperature limiter | 200 °C |
| Safety valve | 20 bar (pressure relief valve against overpressure) |
| Temperature measuring range | 0–200 °C |
| Pressure measuring range | 0–20 bar |
| Experiments | Vapour pressure curve of water; pressure-temperature relationship in a closed system; temperature and pressure measurement |
| Power supply | 230 V, 50 Hz, 1 phase; 230 V, 60 Hz, 1 phase; or 120 V, 60 Hz, 1 phase |
| Dimensions | 800 × 600 × 600 mm (L × W × H) |
| Weight | Approx. 45 kg |
| Product code | EL-TELE-10712 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Marcet Boiler Test Setup Used For?
In a closed vessel holding water and its vapour, the two phases settle into equilibrium, and the pressure they exert, the vapour pressure, is specific to the substance and depends on temperature. As students heat the boiler, they read pairs of temperature and pressure values from the digital display and the Bourdon gauge, and plotting these gives the vapour pressure curve of water up to 200 °C. In theory the rise could continue to the critical point, where liquid and vapour can no longer be told apart. The same relationship underlies process applications such as freeze-drying and pressure-cooking.
What to Specify When Ordering
- Quantity — the number of boilers required.
- Power supply — 230 V 50 Hz, 230 V 60 Hz or 120 V 60 Hz, single phase.
Frequently Asked Questions
What does the Marcet Boiler show?
It shows the relationship between the pressure and temperature of water in a closed system: as the water is heated, its vapour pressure rises, giving the vapour pressure curve.
What is vapour pressure?
It is the pressure set up when a fluid and its vapour reach thermodynamic equilibrium in a closed system. It is specific to each substance and depends on temperature.
Up to what temperature can the curve be recorded?
Temperatures of up to 200 °C are possible, and the measuring ranges are 0 to 200 °C for temperature and 0 to 20 bar for pressure.
How are pressure and temperature read?
A digital temperature display and a Bourdon tube pressure gauge with a range of -1 to 24 bar allow both values to be monitored continuously.
What protects the boiler against overpressure?
A 200 °C temperature limiter and a pressure relief valve, the safety valve rated at 20 bar, protect the system against overpressure.
What are the boiler's capacity and heater rating?
The boiler is made of stainless steel and holds 2 L, and it is heated by a 2 kW heater.
OEM Manufacturer
Buyers of the Marcet Boiler Test Setup deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests thermal engineering trainers, engine test rigs and steam and air apparatus, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
