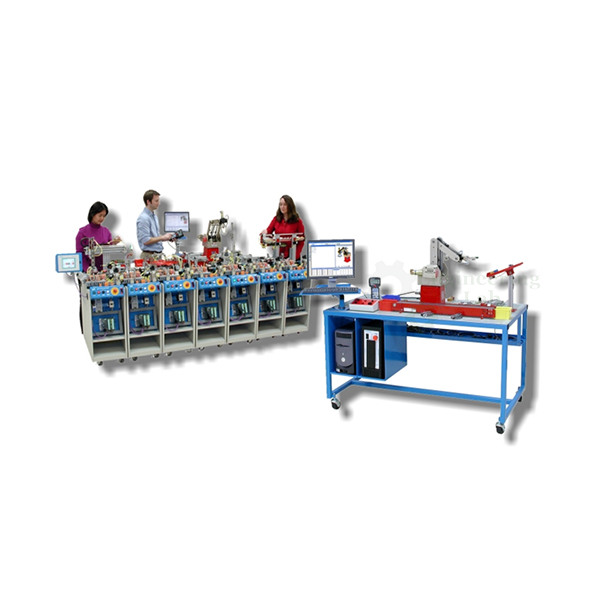

Robotics Learning Trainer
Product Code : EL-RAMLE-10885
Quick Answer: The Robotics Learning Trainer is a 5-axis Pegasus II articulated servo robot arm training system with a gripper, a double-jointed arm that works on both sides of its cell across a 360-degree work envelope, and industrial-grade repeatability of 0.18mm thanks to worm screw drives, high-resolution encoders, infrared homing sensors, and multiple microprocessors. It ships as a complete learning system with a heavy-duty mobile robotics workstation, industrial controller, and teach pendant, letting students practice over 140 executable commands in the MCL II language for precise industrial tasks such as assembly.
Overview:
The Robotics Learning Trainer is built around a powerful, 5-axis Pegasus II articulated servo robot arm with a gripper. This robot features a double-jointed arm that enables it to work on both sides of its work cell and has a 360-degree work envelope, which increases work cell efficiency, and it delivers industrial-quality repeatability (0.18mm) due to worm screw drives, high-resolution encoders, infrared homing sensors, and multiple microprocessors. This learning system includes the 5-axis articulated servo robot arm with its 360-degree work envelope, a mobile workstation, an industrial controller, and a teach pendant, which together are used to practice over 140 executable commands using the powerful MCL II language. This repeatability supports training of more precise industrial tasks such as assembly.
| FEATURES | |
|---|---|
| Includes 5-axis articulated servo robot arm | |
| Features a teach pendant | |
| Teaches articulated arm servo robotics and how its applied in industrial tasks | |
| Provides various programming opportunities | |
| SPECIFICATION | |
| A heavy-duty, mobile robotics workstation capable of supporting industrial quality robots, feeders, fixtures and other accessories. | |
| The workstation is constructed of heavy-duty welded tube steel and a perforated steel top. | |
| The perforated work surface enables fixtures and tooling to be quickly attached and removed, allowing multiple groups to share the use of the robotic workstation. | |
| A device that features two-line display, an emergency stop button, jog capability, and four soft keys which allows the robot to take on a variety of functions according to the menu shown on the teach pendant display. | |
| This unit becomes a handheld programming terminal, enabling users to enter and edit teach points. | |
| A sample copy of the Robotics 1 Student Reference Guide is also included with the system for your evaluation. | |
| Sourced from the system’s multimedia curriculum, the Student Reference Guide takes the entire series’ technical content contained in the learning objectives and combines them into one perfect-bound book. | |
| DIMENSIONS AND WEIGHT | |
| Machine Dimensions (L x W x H) approx.: 1000x 600 x 900mm | |
| Machine Weight approx. | 90kg |
For this and other robotics and mechatronics lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
