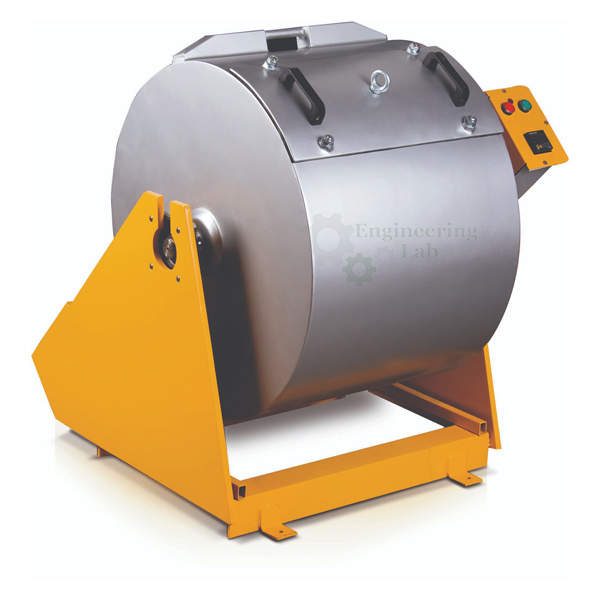

Los Angeles Abrasion Testing Machine
Product Code : EL-ATLE-10468
Los Angeles Abrasion Testing Machine (code EL-ATLE-10468) is a rotating drum machine for measuring the resistance of aggregates to abrasion and impact. A hollow cylinder mounted horizontally on ball bearings is turned at 30-33 R.P.M. by an electric motor through a heavy reduction gear, with a detachable internal shelf, dust tight cover, revolution counter and collection tray, on a 440 V, 3 phase, 50 cycles A.C. supply, and twelve hardened steel balls of approximately 48 mm diameter form the abrasive charge.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Measuring the resistance of aggregates to abrasion and impact |
| Drum | Hollow cylinder mounted horizontally on a frame on ball bearings |
| Charging opening | Closed by a dust tight cover; for charging and discharging the material under test |
| Drive | Electric motor through a heavy reduction gear |
| Drum speed | 30-33 R.P.M. |
| Internal shelf | Detachable, extending throughout the inside length of the drum; catches the abrasive charge so that it does not fall on the cover |
| Revolution counter | Fitted to the frame |
| Collection tray | Supplied, for the material at the end of the test |
| Power supply | 440 V, 3 phase, 50 cycles, A.C. |
| Abrasive charge | Set of twelve hardened steel balls, approx. 48 mm dia. |
| Standards | IS 2386 (Part IV), ASTM C 131, AASHTO T-96 |
| Product code | EL-ATLE-10468 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Los Angeles Abrasion Testing Machine Used For?
In the Los Angeles test, a graded aggregate sample is tumbled with steel balls so that the particles are worn by rubbing and broken by impact, much as stone in a road is worn by traffic. The operator loads the sample and the twelve-ball abrasive charge through the opening, fits the dust tight cover and runs the drum for the specified number of revolutions, which the counter shows. The material is emptied into the tray and sieved, and the loss in mass, expressed as a percentage, is the abrasion value. The standards listed are IS 2386 (Part IV), ASTM C 131 and AASHTO T-96.
What to Specify When Ordering
- Quantity — the number of Los Angeles machines required.
Frequently Asked Questions
What does the Los Angeles Abrasion Testing Machine test?
It measures the resistance of aggregates to abrasion and impact, by tumbling a sample with an abrasive charge of steel balls inside a rotating drum and then measuring the loss.
How fast does the drum turn?
An electric motor turns the drum through a heavy reduction gear at 30-33 R.P.M., and a revolution counter on the frame keeps count of the rotations.
What abrasive charge is supplied?
The machine comes complete with an abrasive charge made up of a set of twelve hardened steel balls, each approximately 48 mm in diameter.
What does the internal shelf do?
The detachable shelf runs the full inside length of the drum. It lifts the sample and balls as the drum turns and stops the abrasive charge from falling on the cover.
What power supply does it need?
The machine is built for operation on a 440 V, 3 phase, 50 cycles A.C. supply, which drives the motor and reduction gear.
What should an export enquiry for this machine include?
Give the number of machines, the destination country and the port or city of delivery, the delivery terms wanted, for example FOB or CIF, any packing requirements and the tender reference if there is one.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Los Angeles Abrasion Testing Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its aggregate testing equipment for grading, strength, abrasion and shape tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
