Capping Set Horizontal

Product Code : EL-CTLE-10915

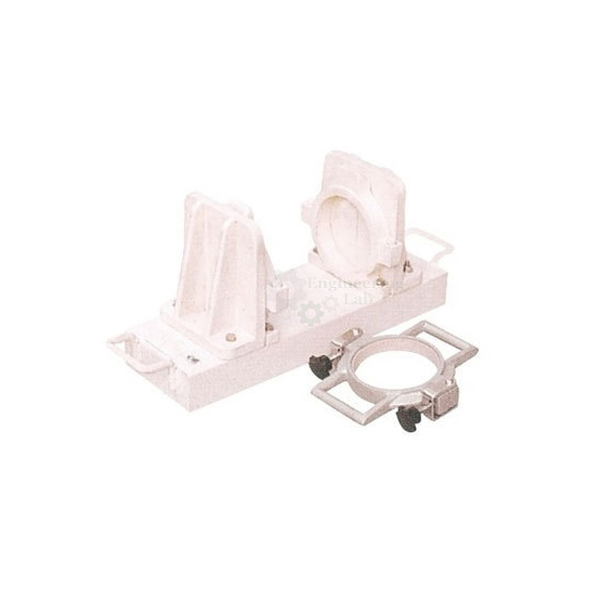

Capping Set Horizontal (code EL-CTLE-10915) is a cylinder capper used to cap concrete cylinders, with two machined plates mounted vertically on a base, one fixed and one adjustable horizontally. Split holders on the plates grip the cylinder, V openings at the top take the capping compound, and the set, which includes a copper cylinder, cylinder carrier, ladle and two spacers, takes 150 mm dia. × 300 mm and 100 mm dia. × 200 mm cylinders.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Capping Set Horizontal Used For?

Concrete cylinders rarely have ends that are flat and square to the axis, and uneven ends concentrate the load during a compression test and lower the measured strength, so each end is given a thin, flat layer of capping compound. The cylinder is lifted with the carrier into the split holders, the removable top halves are bolted down, and molten compound is poured from the ladle through the V openings against the plates; when it has hardened the holders are opened and the capped cylinder removed. The standards listed are IS: 516 1959, BS 1881-120, ASTM C31 and C 617.

What to Specify When Ordering

• Quantity — the number of capping sets required.
• Cylinder size — 150 mm dia. × 300 mm or 100 mm dia. × 200 mm cylinders, or both.

Frequently Asked Questions

Which cylinder sizes can be capped?
The set is made for cylinders 150 mm in diameter × 300 mm long and for cylinders 100 mm in diameter × 200 mm long.

How is the cylinder held during capping?
Holders on both vertical plates grip the cylinder. Each holder is split; the bottom half is fixed and the top half is removable and bolted down onto it.

How is the capping compound poured?
V openings on the upper parts of the vertical plates allow the molten capping compound to be poured in from the ladle supplied with the set.

Can the plates be adjusted?
One plate is fixed firmly to the base, while the other can be moved horizontally, so the gap between them can be set to suit the cylinder.

What is included in the set?
The set consists of a copper cylinder, a cylinder carrier, a ladle and the cylinder capper with its two machined plates, together with two spacers.

Which standards are listed?
For this horizontal capping set, the standards listed are IS: 516 1959, BS 1881-120, ASTM C31 and C 617.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Capping Set Horizontal at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.

Related Concrete Testing Equipment

• Compression Testing Machine Hand Operated — hand-operated C channel load frame with self-aligning upper platen, offered from 50 kN to 3000 kN.
• Semi-Automatic Compression Testing Machine — touch screen compression machine in 1000, 2000 or 3000 kN with printer and RS232 output.
• Flow Table — flow table for mortar and cement: ASTM model 254 mm brass, EN model 300 mm stainless steel.

See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of capping sets and the cylinder sizes to be capped and the delivery location through the contact page; the Add To Cart button on this page also adds the Capping Set Horizontal to an enquiry.
