Flow Table
Product Code : EL-CTLE-10295
Quick Answer:
A Flow Table is used to determine the consistency of mortar, lime and cement specimens, and is available in two models built to ASTM and EN standards, in both hand-operated and motorized versions. The ASTM model has a 254 mm diameter brass table, while the EN model has a 300 mm diameter stainless steel table, and both are supplied complete with a brass flow mould and tamper; the motor operated version drives the table at a rate of 1 revolution per second and stops automatically once its preset number of drops is complete.

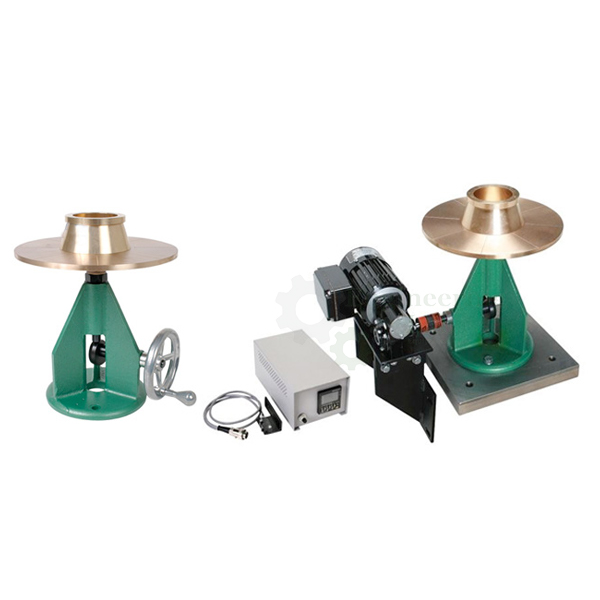

There are two models of the Cement Flow Table, according to ASTM and EN standard, and both are used for determining the consistency of mortar, lime and cement specimens. Manual and motorized models are also available: the hand operated model is fitted with a hand wheel, while the motor operated model is driven by a motor speed reducer through a mechanical coupling at the rate of 1 revolution per second. The number of drops is preset on a counter and the machine stops automatically at the end of the cycle.
ASTM Model
The table is manufactured from brass and has 254 mm diameter. The conical mould is made of brass and has dimensions of 100 mm base dia. X 70 mm top dia. X 50 mm height, and both models are supplied complete with brass flow mould and tamper.
EN Model
The table is manufactured from stainless steel and has a 300 mm diameter table. The conical mould is made of brass and has dimensions of 100 mm base dia. x 70 mm top dia. x 60 mm height.
Standards: ASTM C230; EN 459-2, 1015-3
