Consolidation Apparatus Single Gang
Product Code : EL-STLE-10941

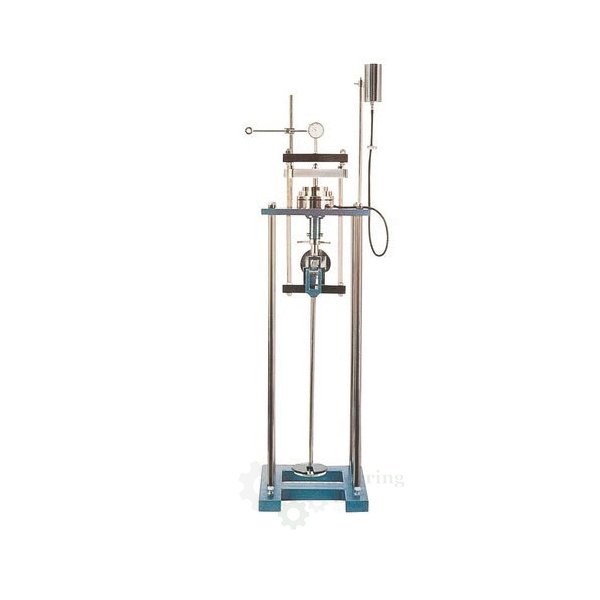

Consolidation Apparatus Single Gang (code EL-STLE-10941) is a one-station oedometer test set used to work out the settlement of clayey soil as it consolidates under load, helping to establish the history of a clay deposit. A 1:1 lever loading unit on a steel stand loads a fixed-type cell for specimens of 60 mm diameter and 20 mm thickness, with porous stones, a water reservoir, 23 weights, a dial gauge, a 40 mm extension and 50 test form pads.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Calculating the settlement in a soil structure caused by consolidation of a clay deposit |
| Loading unit | Maximum capacity of 20 kg per cubic metre |
| Loading yoke | Connected to a lever arm through a counter balance; lever ratio 1:1 |
| Stand | Compact steel stand |
| Oedometer | Fixed-type consolidation meter assembly for specimens of 60 mm diameter and 20 mm thickness, with guide ring |
| Porous stones | At the top and bottom of the specimen |
| Pressure pad | Channel based and perforated, with gasket and water inlet |
| Water reservoir | With pinch cock and plastic tube |
| Weight set pressure | Set of weights giving a pressure of 10 kg per cubic metre |
| Cell compatibility | Loading units suitable for consolidation cells of various diameters, including floating ring type |
| Weights supplied (23 in total) | |
| 1.00 kg per cubic metre | 5 nos |
| 0.50 kg per cubic metre | 6 nos |
| 0.10 kg per cubic metre | 5 nos |
| 0.05 kg per cubic metre | 7 nos |
| Accessories | |
| Dial gauge | 0.0002 × 5 mm to 0.002 × 5 mm |
| Extension | 40 mm length |
| Test form pads | 50, for single dimensional consolidation |
| Supply | |
| Product code | EL-STLE-10941 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Consolidation Apparatus Single Gang Used For?
When a saturated clay is loaded, water is slowly squeezed out of its pores and the ground settles over a long period, so foundations on clay are designed from laboratory consolidation tests. The operator trims a 60 mm by 20 mm specimen into the cell between the porous stones, fills the reservoir so that the specimen stays saturated, and adds weights to the 1:1 lever yoke in stages, reading the dial gauge at set times after each load. Settlement plotted against time and against pressure gives the compressibility of the clay and shows whether the deposit has carried heavier loads in the past.
What to Specify When Ordering
- Quantity — the number of single gang consolidation units required.
Frequently Asked Questions
What does the single gang consolidation apparatus measure?
It is used to calculate the settlement that occurs in a soil structure as a clay deposit consolidates and loses volume, which helps in understanding the history of that deposit.
What specimen size does the oedometer take?
The fixed-type oedometer assembly, with its guide ring, tests soil specimens of 60 mm diameter and 20 mm thickness.
How is load applied to the specimen?
A loading yoke is connected to a lever arm through a counter balance, giving a lever ratio of 1:1, and the loading unit is mounted on a compact steel stand.
How many weights come with it?
Twenty three weights are supplied: five of 1.00, six of 0.50, five of 0.10 and seven of 0.05 kg per cubic metre.
How is the specimen kept wet during the test?
A water reservoir with pinch cock and plastic tube supplies water through the inlet in the perforated pressure pad, and porous stones sit above and below the specimen.
Which accessories are listed with it?
The accessories are a dial gauge (0.0002 × 5 mm to 0.002 × 5 mm), an extension of 40 mm length and 50 test form pads for single dimensional consolidation.
OEM Manufacturer
The Consolidation Apparatus Single Gang is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
