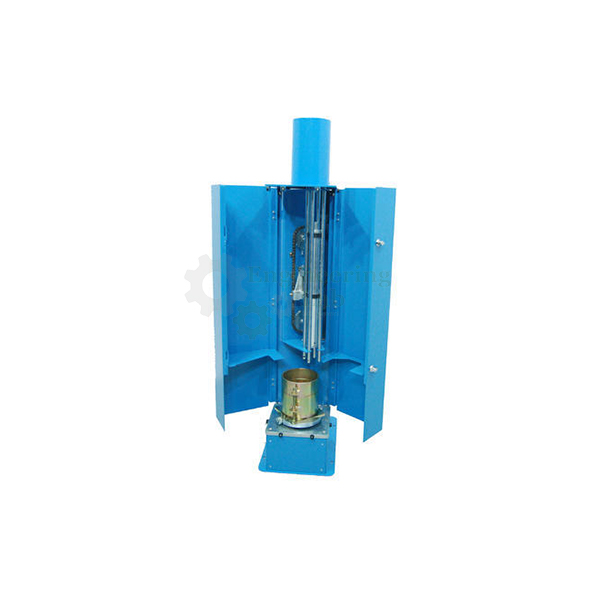

Automatic Soil Compactor
Product Code : EL-STLE-10378
Automatic Soil Compactor (code EL-STLE-10378) is an automatic rammer that compacts standard, modified and CBR soil specimens, stopping at the number of blows preset on its programmable digital counter. The rammer has a 50 mm diameter circular face, a weight adjustable to 2.5 kg or 4.5 kg and a drop of 300 mm or 450 mm, while the table turns the mould in equal steps; the supply is 220 V, 50-60 Hz, 1 Ph.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Fully automatic, uniform compaction of standard, modified and CBR specimens |
| Rammer type | BS EN rammer |
| Blow counter | Programmable digital counter; machine stops at the preset number of blows; blows per layer set at the start of the test |
| Blow pattern | Automatic blow pattern as the rammer travels across the mould, for effective compaction of each layer |
| Mould table | Rotates the mould in equal steps |
| Rammer face | Circular, 50 mm diameter |
| Rammer weight | Adjustable to 2.5 kg or 4.5 kg |
| Drop height | Adjustable to 300 mm or 450 mm |
| Controls | Standard Proctor/CBR switch, emergency stop and start push buttons beside the blow counter |
| Programming | User defined blow number and in-out distribution available |
| Power supply | 220 V, 50-60 Hz, 1 Ph |
| Standards | ASTM D558, D559, D560, D698, D1557, D1883; EN 13286-2, EN 13286-47; BS 1377:4; AASHTO T99, T134, T135, T136, T180, T193; NLT 107/98, 108/91, 111/87 |
| Product code | EL-STLE-10378 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Automatic Soil Compactor Used For?
Laboratory compaction tests find the maximum dry density of a soil and the moisture content at which it is reached, and these values become the targets for compacting fill and road layers on site; compacted specimens are also prepared for CBR testing. With the mould on the rotating table, the operator sets the rammer for the test, the lighter 2.5 kg rammer with the 300 mm drop for standard compaction or the 4.5 kg rammer with the 450 mm drop for modified compaction, enters the blows per layer and presses start. The machine spreads the blows over the layer while turning the mould, and stops at the preset count before the next layer is added.
What to Specify When Ordering
- Quantity — the number of automatic compactors required.
Frequently Asked Questions
Which compaction tests can it perform?
It compacts standard, modified and CBR specimens, with a standard Proctor/CBR switch beside the blow counter and the rammer weight and drop set to suit the test.
How are rammer weight and drop height set?
The circular faced 50 mm diameter rammer is adjustable to 2.5 kg or 4.5 kg, and the drop can be set to 300 mm or 450 mm.
How does the machine cover the whole layer?
The table turns the mould in equal steps while an automatic blow pattern moves the rammer across the mould, so that each layer of soil receives effective compaction.
Can the number of blows be programmed?
Yes. The programmable digital counter takes the number of blows per layer at the start of the test and stops the machine at that count; user defined blow numbers and in-out distribution are also available.
What electrical supply is needed?
The compactor runs on a 220 V, 50-60 Hz, single phase supply and has emergency stop and start push buttons beside the blow counter.
Which standards are given for the compactor?
The standards listed are ASTM D558, D559, D560, D698, D1557 and D1883; EN 13286-2 and 13286-47; BS 1377:4; AASHTO T99, T134, T135, T136, T180 and T193; and NLT 107/98, 108/91 and 111/87.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Automatic Soil Compactor at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
