Water Level Indicator

Product Code : EL-STLE-10402

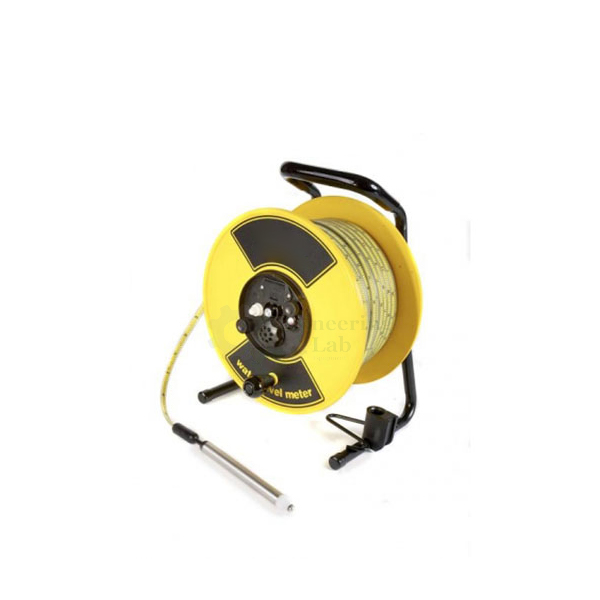

Water Level Indicator (code EL-STLE-10402) is a portable electric contact meter for measuring water level and total depth in bore holes, wells, observation pipes and reservoirs, and for controlling pumping tests. When the probe electrode touches the water a signal lamp lights and an audible alarm sounds, the level is read on the measuring tape in metres and centimetres, and cable lengths of 50, 100, 150 and 200 m are available.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Water Level Indicator Used For?

Groundwater level is recorded during site investigation, in standpipes and observation pipes, and before and during pumping tests, because it affects excavation, foundation design and the stability of slopes. The operator lowers the probe on its tape down the borehole or pipe until the light and alarm show that the electrode has reached the water, then reads the depth on the tape at the top of the casing. Repeated readings during a pumping test show how far the water level is drawn down and how quickly it recovers afterwards.

What to Specify When Ordering

• Quantity — the number of water level indicators required.
• Cable length — 50 m, 100 m, 150 m or 200 m, chosen to exceed the deepest water level to be measured.

Frequently Asked Questions

Where can the water level indicator be used?
It is used in bore holes, wells, observation pipes and reservoirs to measure both the water level and the total depth, as well as for controlling pumping tests.

How does the instrument signal that water has been reached?
Contact between the probe electrode and the water surface completes the circuit, which lights the signal indicator and sounds an audible alarm.

Which cable lengths are offered?
Four versions are available, with cable lengths of 50 m, 100 m, 150 m and 200 m, to suit the depth of the boreholes or wells to be measured.

In what units is the level read?
The water level is read directly on the measuring tape, which is marked in metres and centimetres.

What should be included in an export enquiry?
Give the cable length and quantity needed, the destination country and port or city, the delivery terms such as FOB or CIF, any packing requirements and any tender reference.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Water Level Indicator at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.

Related Soil Testing Equipment

• In-Situ Vane Shear Test Apparatus — borehole vane shear set with 37.5 mm and 50.0 mm vanes and proving ring torque head.
• Soil Augers — hand augers in Standard, Clay, Sand and Mud types with quick-connect extensions for sampling.
• Standard Penetration Test — split-spoon penetration test set with 35 mm i.d. sampler, three-leg 5 metre frame and pulley.
• Constant Head Permeability Apparatus — permeameter with Perspex cell for sands and gravel, in 75 or 114 mm nominal diameter.

See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of indicators and the cable length, 50, 100, 150 or 200 m and the delivery location through the contact page; the Add To Cart button on this page also adds the Water Level Indicator to an enquiry.
