Working Model of Gear Box Manufacturer,Supplier and Exporter in India
Product Code : EL-AELE-10745

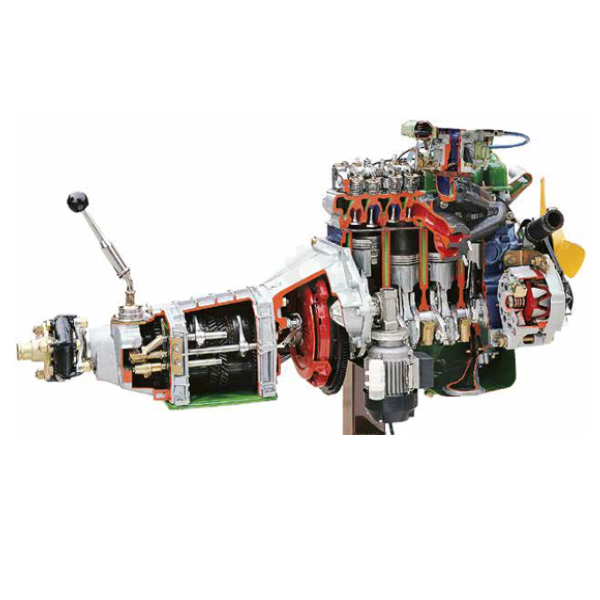

The Gear box with engine cutaway model is carefully sectioned for training purposes, professionally painted with different colours to better differentiate the various parts, cross-sections, lubricating circuits, fuel system, cooling system etc.
Many parts have been chromium-plated and galvanized for a longer life.
The gearbox provides a selection of gears for different driving conditions: standing start, climbing a hill, or cruising on level surfaces.
The lower the gear, the slower the road wheels turn in relation to the engine speed.
The engine drives the input shaft, which drives the lay shaft.
The lay shaft rotates the gears on the main shaft, but these rotate freely until they are locked by means of the synchromesh device, which is splined to the shaft.
FEATURES:
Gear box with clutch model ideal for classroom demonstrations
Cross-sectioned various parts to show internal operation
Equipment Layout: On Base with wheel
Fine finish
Operated: Manually
Simple operations
Functional accuracy
SPECIFICATION:
Gearbox: 4 forward speeds + reverse
4 stroke engine
4 in-line cylinders
Indirect injection
Feeding by turbo supercharger
VE Bosch type rotary injection pump
Overhead camshaft (OHC)
Distribution through a toothed belt;
Alternator
Thermostatic valve
Single-plate clutch with diaphragm
Water cooling
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 1600 x 700 x 1000 mm
Weight (approx.): 150 kg
