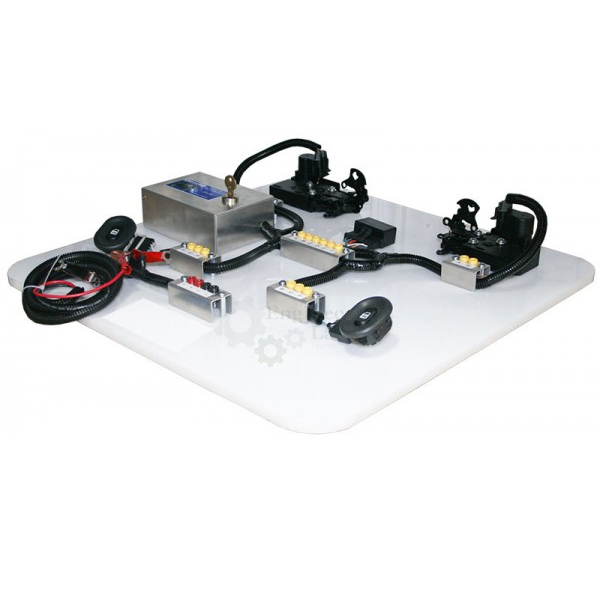

Power Door Lock System Trainer
Product Code : EL-AELE-10734
Quick Answer: The Power Door Lock System Trainer is a functional trainer mounted on a plastic training board that demonstrates how power door locks (also called electric door locks or central locking) let the driver or front passenger simultaneously lock or unlock all doors of a vehicle by pressing a button or switch. It shows how the remote locking system confirms successful locking and unlocking through a light or horn signal, and it serves as a visual aid for students to study the structure and components of the system.
We offer a functional Power Door Lock System Trainer mounted on a plastic training board. The training test rig can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components. Power door locks (also known as electric door locks or central locking) allow the driver or front passenger to simultaneously lock or unlock all the doors of an automobile or truck by pressing a button or flipping a switch.
The remote locking system confirms successful locking and unlocking through either a light or a horn signal, and it usually offers an option to switch easily between these two variants. Both provide almost the same functionality, though light signals are more discreet while horn signals might create a nuisance in residential neighborhoods and other busy parking areas, such as short-term parking lots. Also, the automotive training stand can be used as educational equipment for brake system repair and service procedures.
FEATURES:
OEM components (door lock actuators, switches, with OEM matching wire colors).
A lockable system fault box allowing instructors to insert from one to four faults for student diagnostic learning.
Electrical test points are included on the trainer for circuit diagnosis.
Students can wire this circuit using supplied leads and included OEM wiring diagrams.
Trainer requires an external 12V DC power supply to operate.
User manual included.
SPECIFICATIONS:
Power door lock actuators (2ea).
Door lock relay.
Fault box with 4 faults.
Test points for diagnosis.
Set of 21-jumper leads, 24” (60cm) (6 red, 1 black, 14 blue).
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 550 x 400 x 300 mm
Weight (approx.): 20kg
