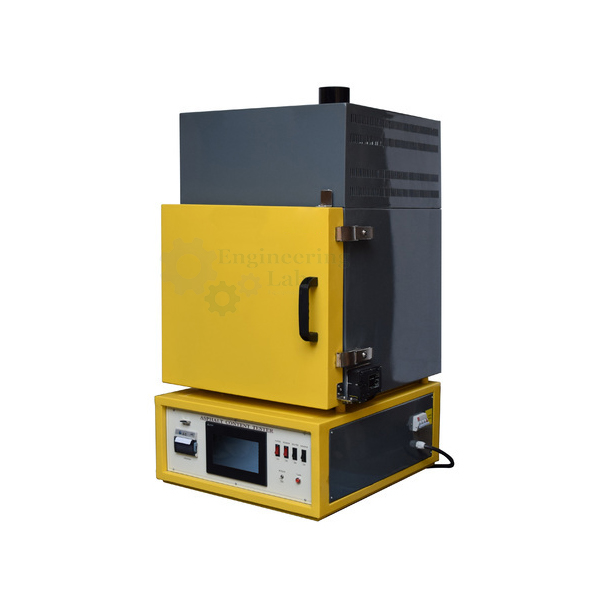

Asphalt Content Tester

Asphalt Content Tester

Product Code : EL-BTLE-10438

Quick Answer: Asphalt Content Tester determines the asphalt content of hot mix asphalt (HMA) and pavement samples by removing the asphalt in an ignition furnace by means of sample heating, not by means of solvent, following ASTM D6307 & EN 12697 39. It accepts a maximum specimen weight of 4000 gms (suggested weight 1000 gms to 1500 gms), with a furnace working temperature of 800° C (538° C standard working temperature) and a testing time of 20-30 minutes, running on a 415 V 50 Hz 20 ampere three phase AC power supply.

Asphalt Content Tester is used to determine the asphalt content of hot mix asphalt (HMA) and pavement samples by removing the asphalt in an ignition furnace by means of sample heating not by means of solvent. Standard followed is ASTM D6307 & EN 12697 39.
Maximum weight specimen is 4000 gms, suggested weight of specimen is 1000 gms to 1500 gms; balance provided is 10 Kg x 0.1 gms, working temperature of furnace is 800° C, standard working temperature is 538° C, and testing time is 20-30 minutes. Size of the furnace: 350 mm length x 430 mm width x 300 mm height. Suitable for operation on 415 V 50 Hz 20 ampere three phase ac power supply.

For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Mastic Asphalt Tester, Reflux Extractor 4000 Gms, Centrifuge Extractor Hand Operated, Automatic Compactor for Bituminous Mixes
