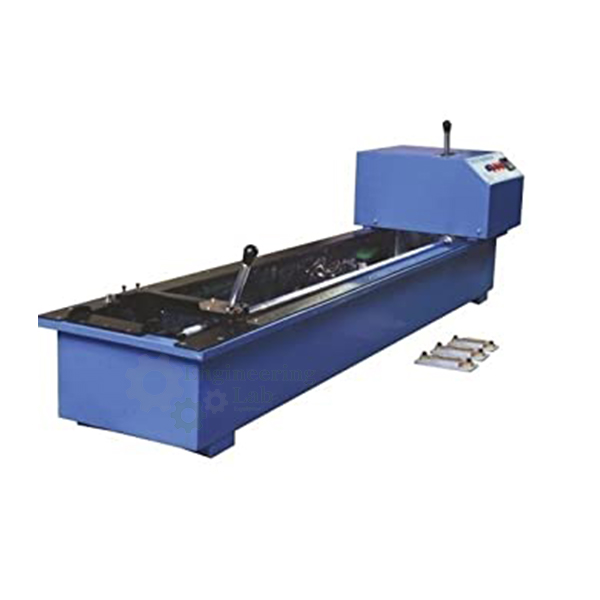

Ductility Testing Apparatus

Ductility Testing Apparatus

Product Code : EL-BTLE-10422

Quick Answer: The Ductility Testing Apparatus is a water-bath ductility tester that uses a motor-driven carriage moving over a lead screw to elongate three bituminous ductility mould specimens simultaneously at a controlled temperature. The assembly is mounted in a stainless steel lined, metal bound hardwood water bath fitted with an electric pump circulator, heater, and thermostatically controlled temperature, and can operate at two rates of travel, 50 mm/min and 10 mm/min. It is supplied complete with ductility moulds with base plates and a calibrated thermometer, and runs on a 230 V, 50 Hz, Single Phase, A.C. supply.

The machine consists of a carriage moving over a lead screw, driven by an electric motor through a reduction gear unit that ensures smooth, constant speed and continuous operation. The entire assembly is mounted in a stainless steel lined water bath, completely encased in metal bound hardwood, and is equipped with an electric pump circulator and heater with thermostatically controlled temperature. It is designed to test three specimens simultaneously, with two rates of travel, 50 mm/min and 10 mm/min, provided, and is suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

Complete With:

Ductility Mould, with Base Plate 3 Nos.

Thermometer IP 38° C, Range: 23° C to 27° C

Standards: IS 1208-1058, ASTM D 113, IP32, 55, AASHTO T 51

For this and other bitumen and asphalt testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Refrigerated Ductility Test System, Automatic Marshall Stability Test Machine, Standard Penetrometer, Elastic Recovery Mould
