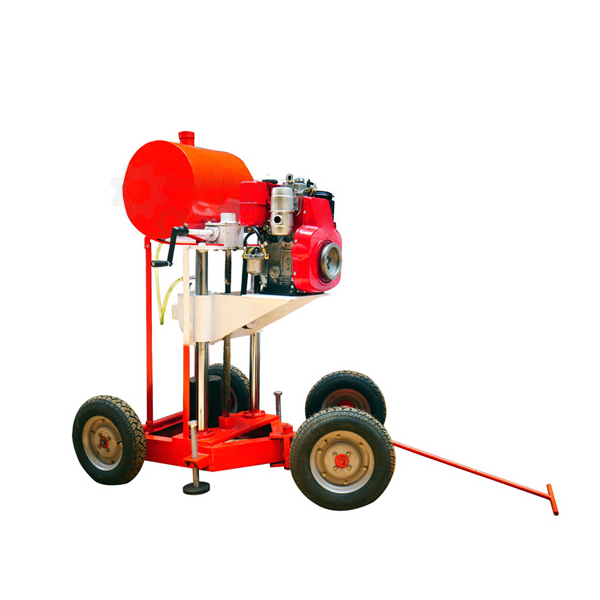

Pavement Core Drilling Machine

Pavement Core Drilling Machine

Product Code : EL-BTLE-10954

Pavement Core Drilling Machine comprised of two vertical support columns with the screwed spindle that help to carry the Drill head/Engine assembly.
A double precision bit advances with screwed spindle provide an accurate and constant drill pressure along with minimum core chipping and Bit's long life.
This instrument is powered by a petrol/diesel engine.
The Pavement Core Drilling Machine is used for the purpose to drill the test scores from or holes in bridges, roads, airport runways, etc.
The 5 Hp diesel or petrol engine with pulley mechanism allows minimum, vibrations.
A Pavement Core Drilling Machine assembly is supplied with a strong rigid metal base with leveling facility, which is suitable for doing vertically down coring applications.

Specification:
A Bit Diameter Varying from 25mm to 150mm.
A maximum depth of core which can be achieved is 700mm.
A Screwed Spindle of 20mm dia.
A Water Tap of 12mm.
A 475 rpm and 800 rpm drill speed is supported.
A Guide Shaft of 50mm dia.
Drill Wrenches, Water Tank, and Leveling Pads are included.
Comes with 5 HP (horsepower) petrol or diesel engine.
