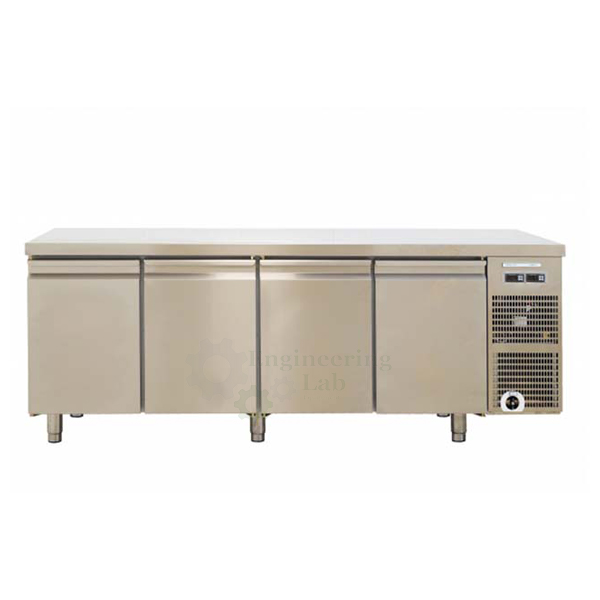

Cement Curing Bench-Type Cabinet
Product Code : EL-CTLE-10366
Quick Answer: The Cement Curing Bench-Type Cabinet maintains an internal temperature of 18-30°C (±1°C accuracy) and humidity of 95±5% RH for curing cement, concrete and mortar specimens, and its bench top can also double as a 2240 mm long working table. Built from sandwich stainless steel panels insulated with polyurethane foam, it has 4 cells each fitting up to 5 sliding grids (1 included per cell) on 70 mm spacing, a 400 liter capacity, and a hermetic piston compressor refrigeration unit with water-evaporation humidity control (no nebuliser) requiring connection to the water mains. It draws 310 W total, weighs approximately 210 kg with overall dimensions of 2400 x 700 x 860 mm, and is tested to ASTM C109, ASTM C511, EN 196-8, EN 196-1 and EN ISO 679.
This cabinet is used for curing cement specimens in commercial and site laboratories. It is entirely made of “sandwich” stainless steel panels, isolated with polyurethane foam, and is designed to maintain the temperature within the operating range between +18 and +30°C with a relative humidity 95±5%. The bench can be conveniently used as a working table, being 2240 mm long, 700 mm wide and 860 mm high, with the cooling system, temperature and humidity control integrated in the structure and housed on the right cabinet. Each one of the 4 cells can be fitted with max 5 sliding grids which can support the moulds with specimens and a large number of cement prisms; using a simple plastic pan (see accessory) it is also possible to cure specimen in water, and it can also be used for curing concrete cubes and other mortar specimens. The cabinet has to be connected to the water mains.
| Specification | Details |
|---|---|
| Capacity | 400 liters approx. |
| Power rating | total 310 W |
| Temperature control | Electronic system with digital display and keyboard to set the curing temperature |
| Cooling system | refrigeration unit with hermetic piston compressor, loaded with HFC ecological refrigerant fluid |
| Humidity saturation | obtained by a water evaporation system (no water nebuliser) consisting of a water collecting bath, immersed re-circulating pump and hydraulic circuit |
| Internal humidity range | 95% ± 5% RH |
| Inlet water temperature min/max | 5/36°C. The cabinet has to be connected to the water mains. |
| Shelf plan dimensions | 310mm x 530mm, (w x d) |
| Total internal height of the cabinet | approx 530mm |
| Stainless steel guides allowing shelf positioning every 70mm | |
| Internal temperature range min/max | 18/30°C |
| Temperature accuracy | ±1°C |
| Ambient temperature min/max | 18/28°C |
| Max weight on the shelf | 40kg |
| Max number of shelves per each cell | 5 (1 included) with 70mm spacing between them |
| Number of shelves included | 1 per each cell (4 in total) |
| Overall dimensions (l x w x h) | 2400 x 700 x 860 mm |
| Weight approx. | 210 kg |
| Standards | ASTM C109 | ASTM C511 | EN 196-8 | EN 196-1 | EN ISO 679 |
For this and other cement testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
