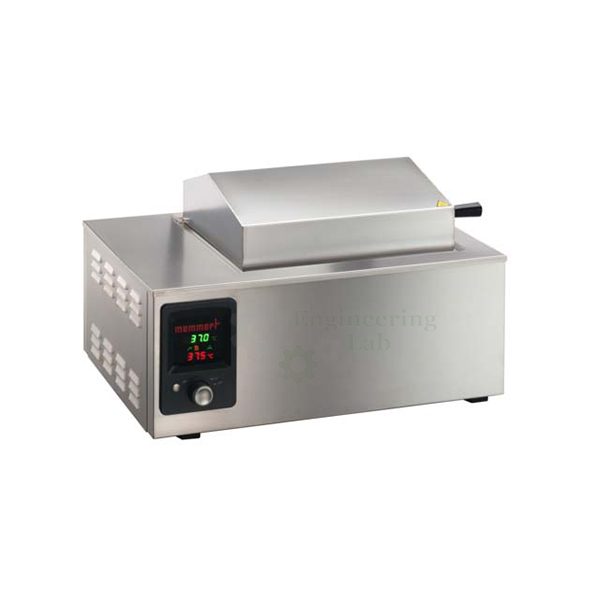

Circulating Water Bath with Cooler Unit
Product Code : EL-CTLE-10367
Quick Answer: The Circulating Water Bath with Cooler Unit is a multi-purpose digital water bath fitted with a cooler unit and a re-circulating water system, used to condition asphalt specimens in water for Marshall and Indirect Tensile tests, and to cure and store cement specimens at controlled temperatures.
EN 12697-23, covering the determination of the indirect tensile strength of bituminous mixtures, prescribes a water conditioning temperature of 5°C or from 5 to 25°C, which is obtainable with the unit’s cooling system, while other standards require conditioning temperatures from 25 to 60°C. The bath can also be used for cement testing, curing 40x40x160 mm cement specimens in water and storing the hydrated samples at a temperature of 20°C. It is ideal for conditioning asphalt specimens for Marshall and Indirect Tensile tests and for curing cement specimens in water.
Internal surfaces are polished stainless steel with a sheet steel insulated outer case, and the cooler unit is located under the water bath. The unit is complete with a re-circulating unit for temperature uniformity, automatically maintains the set temperature, and uses a two-channel electronic thermo regulator for heating and cooling with a digital display, incorporating a refrigeration compressor.
Power: 2000 W
Temperature range: +5 to +60°C
Accuracy: ± 1%
Capacity: 40 l
Inside dimensions: 550x360x200 mm
Outside dimensions: 830x480x950 mm
Weight approx.: 62 kg
Standards: EN 12697-34 | ASTM D1559 | ASTM D5581 | AASHTO T245 | EN 12697-12 | EN 12697-23 | ASTM D6927
