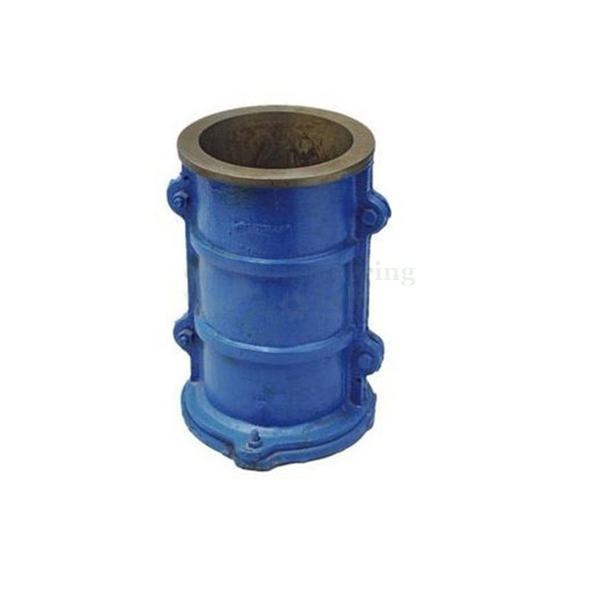

Cylindrical Mould

Cylindrical Mould

Product Code : EL-CTLE-10284

Quick Answer:
A Cylindrical Mould is a cast iron mould, 150mm dia x 150mm height, used to cast cylindrical concrete test specimens. It is split vertically into two parts, with a mean internal diameter within +/-0.2mm and height within +/-1mm, ends machined to +/-0.05, and base plate and top plate machined flat to +/-0.03mm.

Material: Cast iron
Dimensions: 150mm dia x 150mm height.
The cylindrical mould is split vertically into two parts. The mean internal diameter is within +/-0.2mm and height is within +/-1mm, the ends are machined to +/-0.05, and the base plate and top plate are machined flat to +/-0.03mm.

Standards: BS and IS

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: U Shape Box Apparatus, Longitudinal Compressometer, Prism Mould Three Gang
