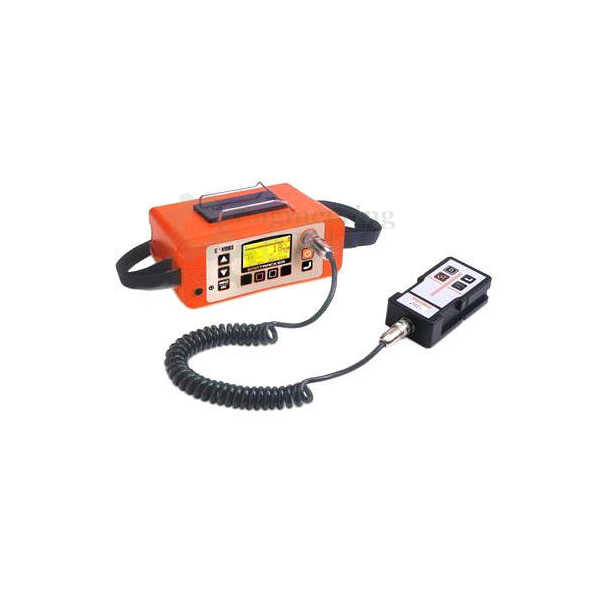

Concrete Cover Meter
Product Code : EL-CTLE-10308
Quick Answer: The Concrete Cover Meter (Bar tracker) uses the pulse induction technique in a rugged, waterproof IP 65 case to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, and to identify the location, orientation and diameter of reinforcement bars (rebar). It features a probe storage compartment, a rechargeable battery pack, and a display screen showing all needed readings, with the basic unit expandable using optional probes for various determinations. It is supplied complete with a standard search head (identifying a 40 mm dia. bar up to 95 mm depth, or an 8 mm dia. bar up to 70 mm depth, sensing area 120×60 mm), shoulder strap, earphone, PC cable, battery pack and charger, and carry case, and it conforms to BS 1881:204.
The Bar tracker, which uses the pulse induction technique, features a rugged waterproof IP 65 case with a probe storage for easy portability, and the battery pack can be recharged inside or outside the gauge. The display screen shows you everything you need to know. It is used to measure the thickness of concrete cover over steel reinforcement bars and metal pipes, and it is also used to identify the location, orientation and diameter of reinforcement bars (rebar); the basic unit can be completed with a number of optional probes for various determinations.
The gauge is supplied complete with :
Main unit
Standard search head to meet most of measurement requirements to identify 40 mm dia. bar up to 95 mm depth (approx.), 8 mm dia. bar up to 70 mm depth (approx.), sensing area 120×60 mm.
Shoulder strap
Earphone
PC cable
Battery pack and charger
Carry case and instruction manual.
Standards: BS 1881:204
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
