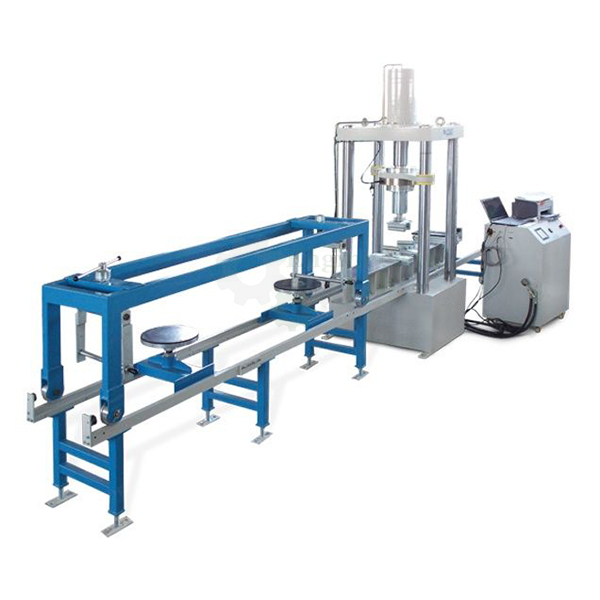

Concrete Railway Sleepers and Bearers Static Testing Machine
Product Code : EL-CTLE-10335
Quick Answer: The Concrete Railway Sleepers and Bearers Static Testing Machine is a 600 kN capacity, four-column Flexural Frame with a double-acting stroking ram, strain gauge load cell, and 350 mm piston stroke, offering a lower-roller distance of up to 1400 mm for accurate flexural, transverse or compression testing.
The 600 kN capacity Flexural Frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame is a four column design carrying the ram fitted to the upper crosshead. The frame has a double acting stroking ram with over travel switch protection to shut the machine down when maximum ram travel is reached. A load cell is used for load measurements on the frame. The 600 kN capacity Flexural Frame is designed to accept all accessories required for flexural, transverse or compression tests. The load frame provides the stability needed for accurate and repeatable test results over the years of operation. The 600 kN capacity Flexural Frame can be connected to any compression machine as a second frame or can be used with any power pack as an independent Flexural Machine. Flexural test assemblies should be ordered separately.
Characteristics:
High stability four column design
High accuracy load measurement with strain gauge load cells
Can accept wide range of accessories for mentioned standards
The distance between lower rollers can be set up to 1400 mm
350 mm piston stroke with safety limit switch
Standards: EN13230-2, EN13230-3 and EN13230-4
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
