Lateral Extensometer

Lateral Extensometer

Product Code : EL-CTLE-10305

Quick Answer: The Lateral Extensometer consists of two movable frames pivoted at one end and fixed to the specimen with tightening screws, used to measure lateral extension during testing. The extension is indicated on a dial gauge of 0.002mm x 5mm mounted on the upper ring, with its tip resting on an anvil that can be zeroed via the anvil screw. It is supplied in a wooden carrying case and manufactured to ASTM C 469.

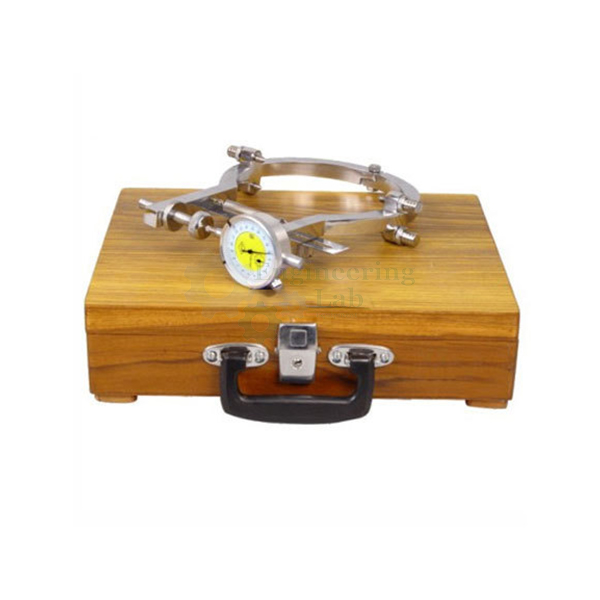

The unit consists of two movable frames pivoted at one end, and the extensometer is fixed to the specimen with the help of tightening screws. The lateral extension is indicated on a dial gauge of 0.002mm x 5mm, which is mounted on the upper ring, with the tip of the dial gauge resting on an anvil, and the zero on the dial gauge can be set by adjusting the anvil screw. It is supplied in a wooden carrying case.

Standards: ASTM C 469

For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Concrete Test Hammer, Pocket Concrete Penetrometer, Concrete Test Hammer Schmidt Hammer N-Type
