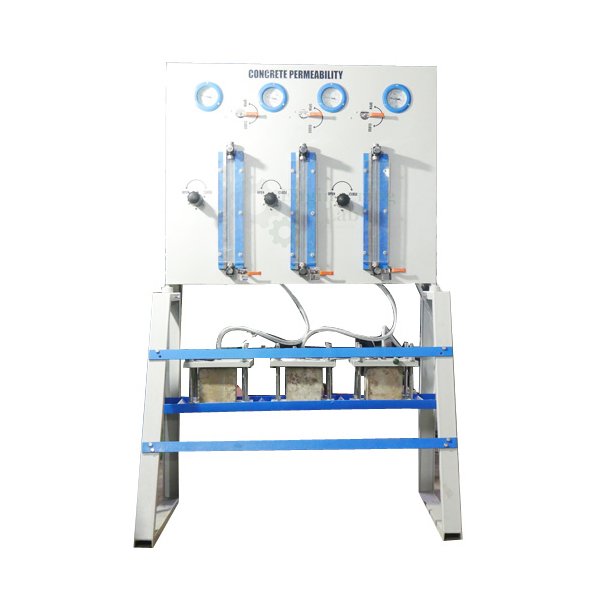

Permeability Apparatus Three Cell
Product Code : EL-CTLE-10929
Quick Answer: The Permeability Apparatus Three Cell is available in 6, 9, 12 or 18 cell configurations, with mild steel cells of round or square cross-section connected to a pressure chamber that is fitted with a pressure regulator (0-15 Kg/cm Square range) and a gauge, a measuring cylinder of 500cc to measure draining/percolated water, and a foot pump with a pressure tube to develop pressure in the chamber. The entire assembly stands on a stand with a T-connector, rubber hosepipe and sleeve-packed valve, and pressure can also be applied by a pressure air line or a compressor.
Description :
Three Cell is available for 6, 9, 12 or 18 cells. The air pressure compressor is applied at 2 HP capacity. The measuring cylinder of the apparatus is 500cc, for measurement of the draining water. The pressure regulator can regulate up to 0-15 Kg/cm Square.
Note: The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-15kg/cm sq., and a gauge is provided for indicating the pressure in the cell. A foot pump and a pressure tube are supplied to develop pressure in the chamber. The apparatus is supplied with a measuring cylinder of 500cc to measure the percolated quantity of water.
Specification:
It encompasses mild steel cells of either round or square cross-section. The cells are connected with the pressure chamber, and the entire assembly stands on a stand, where a T-connector, rubber hosepipe and sleeve-packed valve are mounted. The assembly of the cells is connected with a base plate, and at the top it is connected with the nozzles. The pressure chamber has a regulator to control the air pressure in it.
Note: Pressure can also be applied by a pressure air line or by a compressor (2 HP capacity), which can be supplied at an extra cost.
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
Last Updated: September 2026
