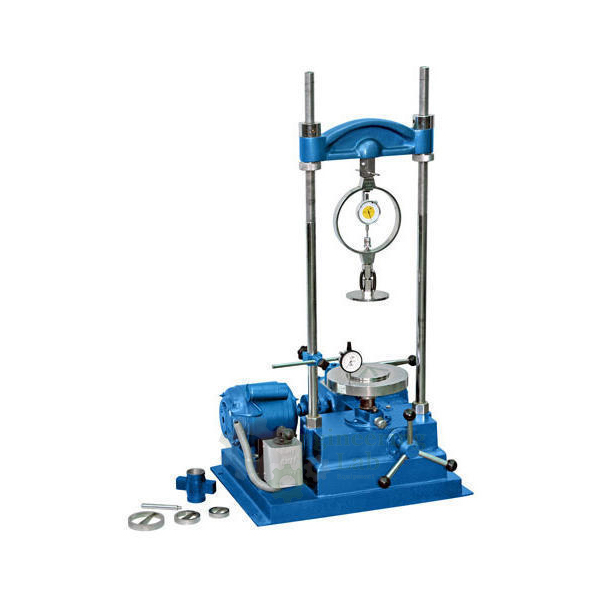

Unconfined Compression Tester (Motorized)

Unconfined Compression Tester (Motorized)

Product Code : EL-STLE-10381

Quick Answer: The Unconfined Compression Tester (Motorized) is a screw-operated load frame used to perform unconfined compression tests on soil specimens, with a capacity of 5000 kg and a gear box and motor drive giving rates of strain of 1.25, 1.5, and 2.5 mm/min. It comes with a pair of cone seatings, an adaptor for the proving ring, and a strain dial gauge bracket, and it operates on a 230 V, Single Phase A.C. supply.
Comprises a screw operated load frame, cap. 5000kg with a gear box and motor drive giving 1.25, 1.5, 2.5mm/min. Rates of strain, a pair of cone seating, adaptor for proving ring, and strain dial gauge bracket. Suitable for operation on 230 V, Single Phase A.C. Supply. Supplied with one pair of male/female coning tools for 38mm dia samples but without ring and dial gauge.
Accessories: Coning tools in pairs (Male & Female) for samples having diameter 38, 50, 75 & 100mm

Standards: IS:2720 (Part-10), ASTM D2166/D2166M -16

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.

Last Updated: September 2026

Related Products: Direct Shear Test Apparatus, In-Situ Vane Shear Test Apparatus, Laboratory Vane Shear Apparatus (Motorized), Consolidation Test Apparatus
