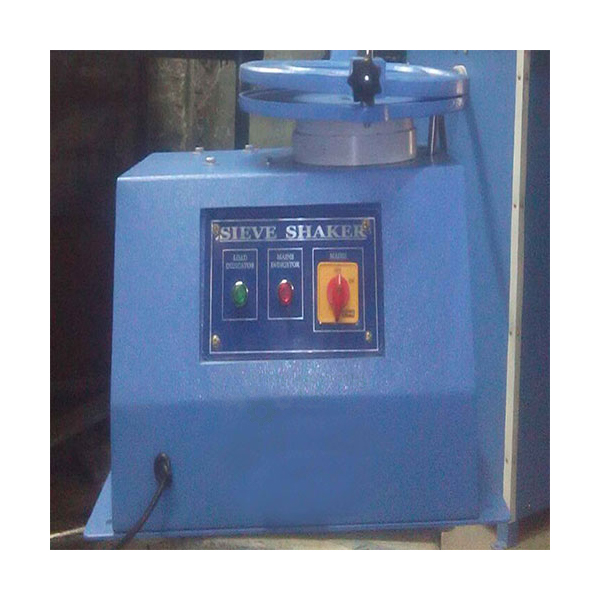

Gyratory Sieve Shaker Motorized

Product Code : EL-STLE-10947

Quick Answer: The Gyratory Sieve Shaker (Motorized) combines a gyratory motion of the table with an upward-and-downward movement to ensure that every square centimetre of the sieve is utilized, while a pair of rods and a holder fixed on top of the uppermost sieve hold the sieve set firmly in place. It can carry up to 7 sieves of 150 mm to 200 mm diameter, driven by a 1/4 H.P. motor through an oil-immersed reduction gear, and is suitable for a 230 V, 50 Hz, single-phase A.C. supply. It is comprehensively used in industries such as cement, pharmaceuticals, soap, roofing, pigments and minor aggregates.

The Gyratory Sieve Shaker Motorized produces a rotary motion, and in addition to this gyratory motion of the table, there is an upward and downward movement that ensures every square centimetre of the sieve is utilized. A pair of rods and a holder can be fixed on top of the uppermost sieve, and thus the sieve set is firmly held. It is comprehensively used in industry like cement, pharmaceuticals, soap, roofing, pigments, minor aggregates, etc., and is suitable for operation from a 230 V, 50 Hz, single phase A.C. supply.

Specifications
A 1/4 H.P. motor is used to drive the shaker through a reduction gear immersed in oil.
A sieve table is inclined from the vertical axis, which charges in a clockwise direction and does not rotate.
It can carry up to 7 sieves of 150 mm to 200 mm diameter.
To have rotary motion in the shaker, a stop pin is given below the table, which can be removed.
The sieve also has an upward and downward movement along with the gyratory motion.
A pair of rods and a holder is given to fix the sieve in a firm position.
Operated from a 230 V, 50 Hz, single phase A.C. supply.
Extras	An adapter for a sieve with 300 mm dia and 450 mm dia Gyratory Sieve Shaker Motorized is available at extra cost.

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
