Oldham Coupling

Oldham Coupling

Product Code : EL-AMLE-10632

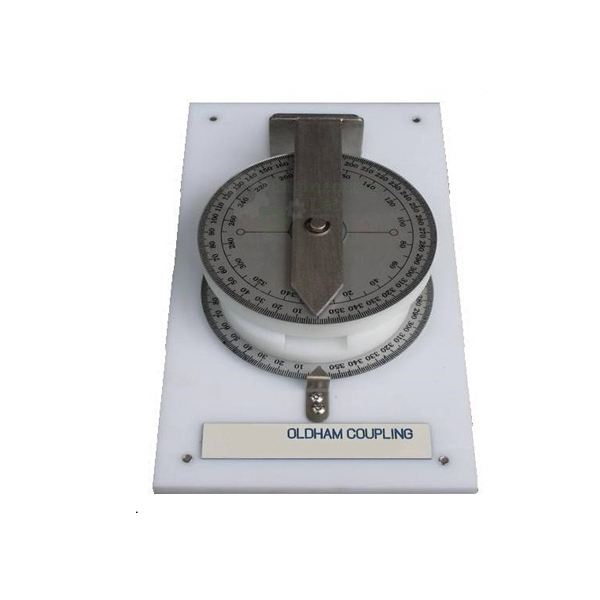

The Oldham coupling mechanism demonstrates relative angular motion in degrees between two shafts with parallel but displaced axes.
An Oldham coupler is a method to transfer torque between two parallel but not collinear shafts.
It has three discs, one coupled to the input, one coupled to the output, and a middle disc that is joined to the first two by tongue and groove.
The tongue and groove on one side is perpendicular to the tongue and groove on the other.
Often springs are used to reduce backlash of the mechanism.
The coupler is much more compact than, for example, two universal joints.

FEATURES:
Equipment Layout: On Base
Fine finish
Simple operations
Operated: Manually (Through a Crank Handle)
Functional accuracy
The properly constructed model is hand Operated,
Sturdiness
Corrosion-resistance
Enhanced durability

DIMENSIONS AND WEIGHT:
L x W x H (approx.): 300 x 300 x 200 mm
Weight: 5kg
