Vibration of Spiral Spring Apparatus

Vibration of Spiral Spring Apparatus

Product Code : EL-AMLE-10641

Spiral spring is a type of spring which is formed by a metallic strip wound around a rod at same point.

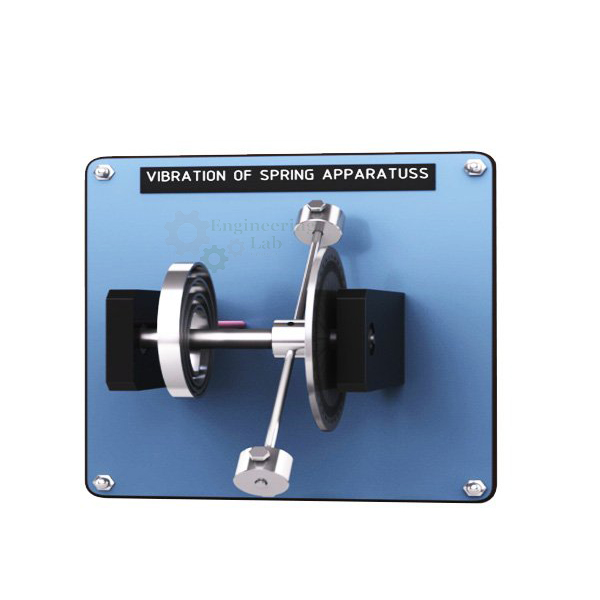

The apparatus consists of a shaft on which the spiral spring is attached.
A metallic rod, containing masses at its edges, is used to deflect the shaft.
The deflection can be measured through a protector and the extent to which the spring was deflected initially can also be found.
This unit is designed to determine the time period of spiral spring and its frequency.

Specification :
Investigation of vibrations on a spiral spring-rotating mass system
Axis mounted on ball bearings
2 levers with sliding weights
Spiral spring
Integrated angle measuring scale mounted on axis
Wall mounting plate made of anodised aluminium

Technical Data :
Spiral spring
stiffness: c=238Nmm
cross-section: 10x1mm
effective length: approx. 800mm
inside radius: 10mm
outside radius: 50mm

Angle measuring scale: 0…360°
Resolution:
Base plate (wxh): 200x250mm

Weights made of stainless steel
Mass: 0.5kg
Diameter: 50mm

Levers made of stainless steel
diameter: 8mm
length: 154mm
arm radius of the rotating mass: 36…150mm
