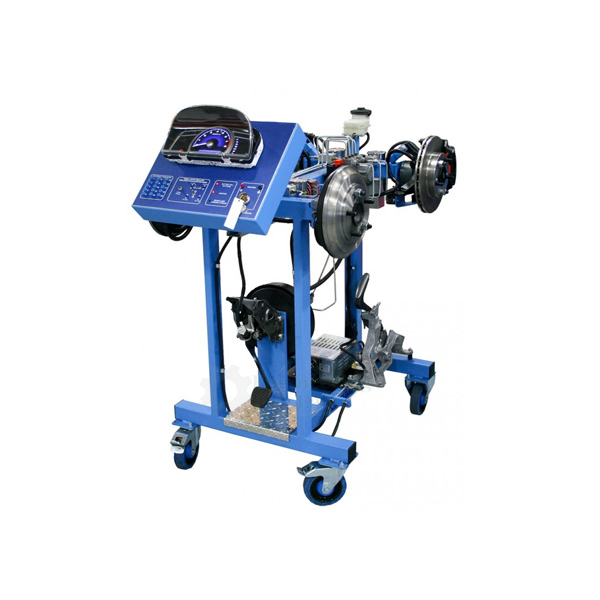

Working Model of ABS Braking System
Product Code : EL-AELE-10742
Quick Answer: This Working Model of ABS Braking System is an educational ABS trainer used to demonstrate the functionality of an ABS braking system as it operates on a real vehicle. It provides a method of demonstrating braking system principles used on today's vehicles, and the instructor can manually select which wheel combinations are desired to lock up prior to application of the brake pedal.
The trainer can be used in a classroom environment for demonstrations to students and is a great educational tool that allows students to learn the structure of the hydraulic braking system, study its components, and perform various measurements, tests, and other service and diagnostic procedures.
FEATURES:
“Real” automotive components with fully functional ABS 4-channel hydraulic system
Vehicle instrument panel with indicator lamps
ABS Control Unit breakout box for hookup of DVOM and Oscilloscope
Hydraulic pressure gauges at each wheel (4)
Fault insertion box (lockable) 6 faults
Four (4) hubs equipped with brakes (2 discs and 2 drums)
Fully functional parking brake system
All routine brake service procedures can be performed on this trainer including component replacement, adjustments and hydraulic bleeding
SPECIFICATION:
Fully functional, cross diagonal, hydraulic braking system with ABS is installed in a mobile solid frame.
Power requirements: 110V @ 20 amps or 220V @ 10 amps (specify when ordering)
Sturdy powder coated metal stand with two locking swivel and two fixed casters.
55A DC power supply included.
Trainer can be used for full mechanical service and repair operations of:
ABS Electrical System (w/ wheel speed sensors)
ABS Hydraulic Control unit
Front disc brakes
Rear drum brakes
Master Cylinder & Hydraulic system (w/ pedal)
Parking Brake system
DIMENSIONS AND WEIGHT:
L x W x H (approx.): 800 x 800 x 1200 mm
Weight (approx.): 65 kg
For this and other automobile engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
