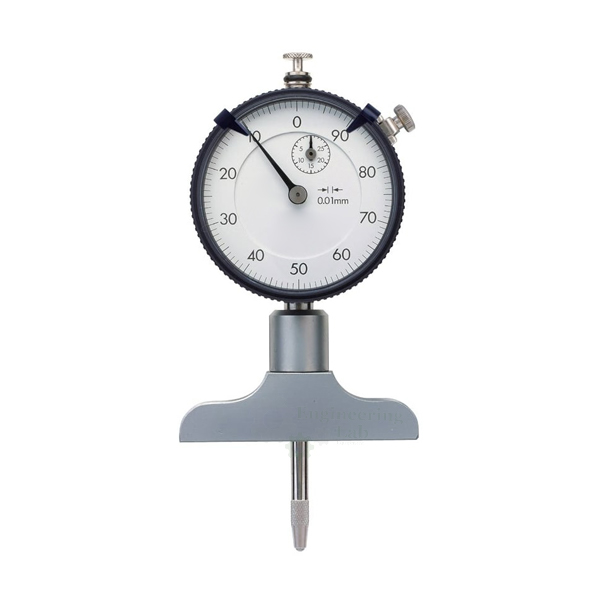

Depth Gauge Dial Type

Depth Gauge Dial Type

Product Code : EL-MAILE-10825

Quick Answer: The Depth Gauge Dial Type is a caliper type dial depth gauge with fine adjustment, used for depth measurement with the reading taken from a dial gauge. It is made of hardened stainless steel and has a range of 0-8″, a graduation of 0.001″ and an accuracy of ±0.001″.

The base and measuring faces are hardened and lapped, and a fine adjustment screw is provided for fine setting during measurement. The dial gauge shows the reading in fine units, with a resolution of 0.001″ across the 0 up to 8″ range listed for the series. A wider extension base is available as an option and is sold separately.

FEATURES
Made of hardened stainless steel, and base and measuring faces are hardened and lapped for durability and accuracy
Measurement range for series of 0 up to 8″, and resolution of 0.001″
Dial gauge provides precise and easily readable measurements in fine units
Has fine adjustment screw for precise measurements
Optional wider extension base sold separately
SPECIFICATION
Dial Depth Gauge with Fine Adjustment
Caliper Type
Accuracy+/-0.001″
Range0-8″
Graduation0.001″

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
