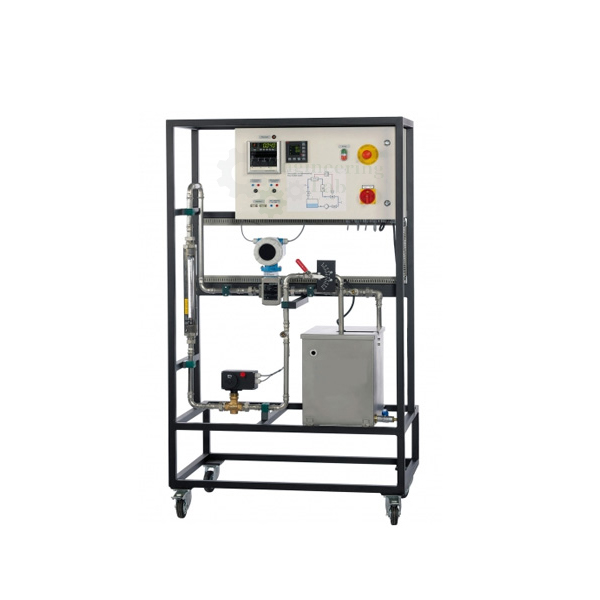

Computerized Flow Control Trainer
Product Code : EL-MAILE-10801
Quick Answer: The Computerized Flow Control Trainer is a closed-loop process control trainer that demonstrates industrial flow control using real control-engineering components. A centrifugal pump (250W, 150L/min, 7m head) delivers water from a 30L storage tank through a piping system, an electromagnetic flow sensor (0…6000L/h) and a Rota meter (0…1960L/h) measure the flow rate, and a digital industrial controller drives a motorized control valve (Kvs 5,7m3/h) to regulate it, while a ball valve in the outlet line introduces defined disturbance variables. The controlled variable X and manipulating variable Y are plotted on an integrated 2-channel line recorder or tapped as analogue signals at switch-cabinet lab jacks for connecting external recording equipment such as an oscilloscope or flatbed plotter, giving students a practical, industry-realistic introduction to control-engineering fundamentals with a freely configurable P, I, D digital controller.
A pump delivers water from a storage tank through a piping system, and the flow rate is measured by an electromagnetic sensor, which permits further processing of the measured value by outputting a standardized current signal, while a Rota meter also indicates the flow rate directly. The controller used is a digital industrial controller, and the actuator in the control loop is a control valve with electric motor operation; a ball valve in the outlet line enables defined disturbance variables to be generated. The controlled variable X and the manipulating variable Y are plotted directly on an integrated 2-channel line recorder, or alternatively the variables can be tapped as analogue signals at lab jacks on the switch cabinet, which enables external recording equipment, such as an oscilloscope or a flatbed plotter, to be connected.
| FEATURES | |
|---|---|
| Construction of the system with components commonly used in industry | |
| Digital controller with freely selectable parameters | P, I, D and all combinations |
| Experimental introduction to control engineering using an example of flow control | |
| Fundamentals of control engineering | |
| Real industrial control engineering components | controllers, transducers, actuators |
| SPECIFICATION | |
| Storage tank | 30L |
| Centrifugal pump | |
| Power consumption | 250W |
| Flow rate | 150L/min |
| Head | 7m |
| Speed | 2800min-1 |
| Rota meter | 0…1960L/h |
| Electromagnetic flow rate sensor | 0…6000L/h |
| Control valve with electric motor | |
| Kvs | 5,7m3/h |
| Stroke | 5mm |
| Characteristic curve equal-percentage | |
| Valve-opening position sensor | 0…1000Ω |
| Line recorder | |
| 2x 4…20mA | |
| Feed rate | 0…7200mm/h, stepped |
| Controller | |
| Process variables X, Y as analogue signals | 4…20mA |
| Power required for operation | |
| 230V, 50Hz, 1 phase | |
| 230V, 60Hz, 1 phase | |
| DIMENSIONS AND WEIGHT | |
| LxWxH | 1000x700x1750mm |
| Weight | approx. 110kg |
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
