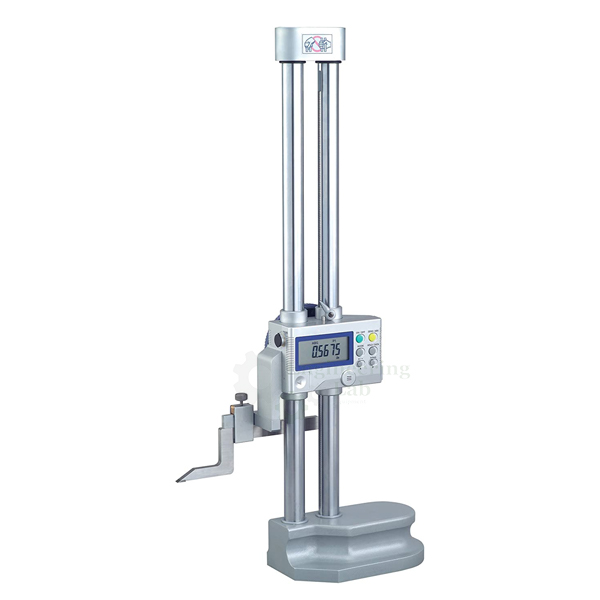

Digital Height Gauge
Product Code : EL-MAILE-10846
Quick Answer: A Digital Height Gauge is a precision measuring instrument that travels on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units, with an LCD digital readout covering a measurement range of 0” – 12”/0 – 300 mm at a resolution of 0.0005”/0.01 mm and an accuracy of + or – 0.00157”/0.04 mm. A hand-operated slider with a fine-adjustment carriage and a carbide-tipped scriber give precise feed and long life, while a Statistical Process Control (SPC) output can transmit results to a computer. It runs on a CR2032 battery and comes with a protective case.
Height gauges, also called gages, are precision measuring instruments that travel on a vertical column (also called the beam) to measure and/or mark the vertical distance from the base of an object in fine units. Turning a calibrated screw, or one or more feed wheels, changes the vertical position of the gauge and its attached pointer, and the recorded rotations are read from a scale, a dial, counters, and/or an electronic display.
A screw clamp holds the pointer to the gauge. The pointer is typically sharpened to act as a scriber and can be used to mark a position on a work piece by scratching its surface, though on compatible units an electronic touch-signal probe may replace the scriber. Height gauges are typically used in manufacturing, machining, and mechanical engineering.
FEATURES:
Measurement range of 0″ – 12″/0 – 300 mm, with resolution to 0.0005″/0.01 mm
Hand-operated slider with fine-adjustment carriage for precise feed
Carbide-tipped scriber for hardness and to help prolong life
LCD digital readout displays sharp figures for viewing ease
Statistical process control (SPC) output transmits results to a computer
SPECIFICATION:
The Standard Gage of LCD electronic height gauge
An LCD digital readout precise to 0.0005”/0.01 mm
Has a measurement range of 0” – 12”/0 – 300 mm
With + or – 0.00157”/0.04 mm of accuracy
CR2032 Battery
Protective case
Inspection report
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
